EP20K1000EFC672-1

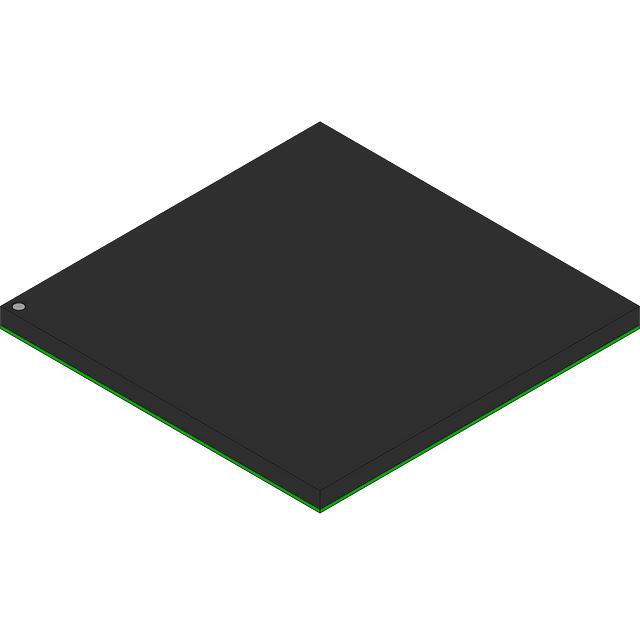

The EP20K1000EFC672-1 is an Altera APEX-20KE® field programmable gate array provided in a 672-ball BGA package. It delivers a mid-range programmable logic solution with 38,400 logic elements, approximately 1,772,000 gates and substantial I/O capacity.

Designed for commercial-grade electronic designs, the device offers on-chip RAM, a 508-pin I/O count, a compact 672-BBGA (supplier package: 672-FBGA, 27×27) footprint, and low-voltage supply operation between 1.71 V and 1.89 V. The device is RoHS compliant and rated for operation from 0 °C to 85 °C.

Key Features

• Core Logic  Approximately 38,400 logic elements providing the programmable fabric for custom logic and glue-code implementation.
• Gate Capacity  Approximately 1,772,000 logic gates to support medium-complexity designs.
• On‑Chip Memory  Approximately 0.328 Mbits of total RAM (327,680 total RAM bits) for embedded data buffering and state storage.
• I/O Density  508 user I/O pins to support multiple external interfaces and parallel connectivity.
• Package & Mounting  672-BBGA package (supplier device package: 672-FBGA, 27×27) with surface-mount mounting type for compact PCB implementations.
• Power  Core supply voltage range of 1.71 V to 1.89 V for low-voltage system integration.
• Temperature & Grade  Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Compliance  RoHS compliant for environmental and regulatory alignment.

Unique Advantages

• High logic density: 38,400 logic elements enable complex combinational and sequential designs without external PLD expansion.
• Significant on-chip memory: Approximately 0.328 Mbits of RAM supports local buffering, FIFOs and small embedded data structures.
• Extensive I/O capability: 508 I/O pins accommodate diverse peripheral interfaces and parallel connectivity requirements.
• Compact BGA footprint: 672-BBGA (27×27) surface-mount package minimizes board area for space-constrained applications.
• Low-voltage integration: 1.71 V to 1.89 V supply range supports integration into low-voltage power architectures.
• Commercial operating range: Rated 0 °C to 85 °C and RoHS compliant for standard commercial deployments.

Why Choose EP20K1000EFC672-1?

The EP20K1000EFC672-1 positions itself as a versatile, mid-range FPGA choice for designers needing a balance of logic capacity, I/O density and compact packaging. Its combination of approximately 38,400 logic elements, around 0.328 Mbits of on-chip RAM and 508 I/Os makes it suitable for projects that require substantial programmable logic and connectivity within a surface-mount BGA footprint.

As a commercial-grade, RoHS-compliant Altera APEX-20KE® device with a defined operating temperature range and low-voltage supply, it provides a predictable platform for production designs that prioritize integration density and controllable power requirements.
