EP2AGX65DF25C5N

The EP2AGX65DF25C5N is a commercial‑grade Arria II GX field‑programmable gate array (FPGA) from Intel. It provides a high‑density programmable fabric with 60,214 logic elements and approximately 5.37 Mbits of embedded memory to implement complex digital functions and system integration in a single device.

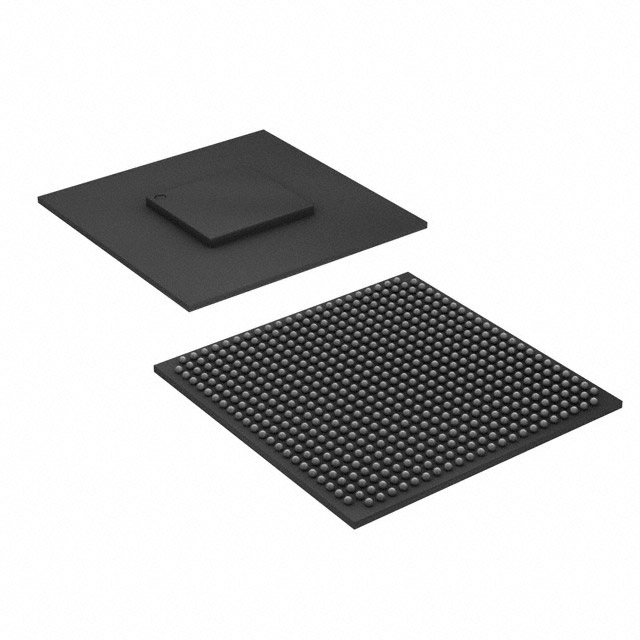

Packaged in a compact 572‑FBGA (25×25) surface‑mount package with 252 user I/Os and RoHS compliance, this device targets designs that require substantial on‑chip logic, embedded RAM, and a defined commercial operating range.

Key Features

• Logic Capacity — 60,214 logic elements for implementing sizable combinational and sequential logic designs.
• Embedded Memory — Approximately 5.37 Mbits of on‑chip RAM to support data buffering, state storage, and memory‑intensive functions.
• I/O Density — 252 available I/Os to connect peripherals, interfaces, and board‑level signals.
• Package & Mounting — 572‑FBGA (FCBGA) in a 25×25 footprint; surface‑mount mounting for compact board integration.
• Power Supply — Core voltage supply range specified at 870 mV to 930 mV to match system power design.
• Operating Grade & Temperature — Commercial grade with an operating temperature range of 0 °C to 85 °C.
• Regulatory Compliance — RoHS compliant, supporting lead‑free assembly requirements.

Unique Advantages

• High integration density: 60,214 logic elements and substantial on‑chip RAM reduce the need for external components and simplify board layout.
• Robust I/O count: 252 user I/Os provide flexibility for connecting multiple interfaces and peripherals without multiplexing compromises.
• Compact surface‑mount package: The 572‑FBGA (25×25) package enables high‑density PCB designs while maintaining thermal and signal routing advantages of a BGA.
• Defined commercial operating range: Rated for 0 °C to 85 °C, making the device suitable for standard commercial environments and deployments.
• Controlled core power requirements: Core supply specified between 870 mV and 930 mV for predictable power budgeting and regulation design.
• RoHS compliance: Facilitates use in lead‑free manufacturing processes and helps meet environmental regulations.

Why Choose EP2AGX65DF25C5N?

The EP2AGX65DF25C5N delivers a balanced combination of high logic density, substantial embedded memory, and flexible I/O in a compact 572‑FBGA package. Its commercial‑grade rating and defined electrical requirements simplify integration into mid‑to‑high complexity digital systems where on‑chip resources and board‑level I/O availability matter.

This device is well suited to designers and procurement teams seeking a proven Arria II GX family FPGA with verifiable specifications for logic capacity, memory, I/O count, power supply range, and operating temperature — providing a reliable building block for scalable system designs.

Request a quote or submit an inquiry to receive pricing and availability information for EP2AGX65DF25C5N, and consult the product datasheet for full electrical and timing specifications.
