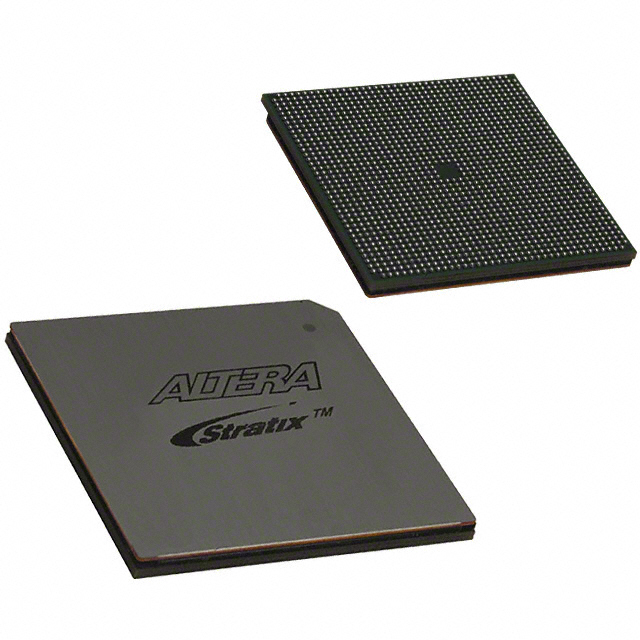

EP2SGX130GF1508I4N
| Part Description |
Stratix® II GX Field Programmable Gate Array (FPGA) IC 734 6747840 132540 1508-BBGA, FCBGA |
|---|---|
| Quantity | 1,233 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Intel |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 1508-FBGA, FC (40x40) | Grade | Industrial | Operating Temperature | -40°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 1508-BBGA, FCBGA | Number of I/O | 734 | Voltage | 1.15 V - 1.25 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 6627 | Number of Logic Elements/Cells | 132540 | ||
| Number of Gates | N/A | ECCN | 3A001A7A | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 6747840 |
Overview of EP2SGX130GF1508I4N – Stratix® II GX FPGA, 132,540 logic elements
The EP2SGX130GF1508I4N is an Intel Stratix® II GX field programmable gate array (FPGA) offered in a 1508-BBGA FCBGA package for industrial applications. It provides high logic capacity, abundant I/O, and family-level high-speed serial transceiver capabilities suited for demanding communications, backplane, and protocol-bridging designs.
Built around the Stratix II GX architecture, the device combines a large logic array with TriMatrix embedded memory, high-speed DSP resources and configurable transceivers to deliver integration and performance for systems that require flexible, high-bandwidth FPGA solutions.
Key Features
- Logic Capacity — 132,540 logic elements to implement complex digital logic and system functions.
- Embedded Memory — Approximately 6.75 Mbits of on-chip RAM for FIFOs, buffering and dual-port memory structures.
- I/O Density — 734 user I/O pins to support wide parallel interfaces and dense system connectivity.
- High-Speed Transceivers (family-level) — Stratix II GX family devices include high-speed serial transceivers supporting 600 Mbps to 6.375 Gbps per channel and protocols such as PCI Express and Gigabit Ethernet; features include CDR, dynamic reconfiguration, adaptive equalization and selectable on‑chip terminations.
- DSP and Memory Architecture (family-level) — Dedicated high-speed DSP blocks for multipliers and MAC functions (up to 450 MHz) and TriMatrix memory with block sizes designed for high-performance FIFOs (up to 550 MHz).
- Clocking — Support for multiple global and regional clock networks plus up to four enhanced PLLs per device (family-level features) for flexible clock management and spread‑spectrum operation.
- Package & Mounting — 1508-BBGA (FCBGA) supplier package, surface-mount mounting type; supplier listing shows 1508-FBGA, FC (40×40).
- Power & Thermal — Core supply range 1.15 V to 1.25 V; industrial operating temperature range −40 °C to 100 °C.
- Compliance — RoHS‑compliant.
Typical Applications
- High-speed backplane interfaces — Leverage high logic capacity and family-level transceiver bandwidth for protocol bridging and packet routing across backplanes.
- Chip-to-chip and board-to-board links — Use integrated transceivers and adaptive equalization for robust serial connectivity between components.
- Communications protocol bridging — Implement flexible protocol conversion and aggregation using abundant logic, DSP resources, and on-chip memory for buffering.
- High-performance DSP and packet processing — Combine DSP blocks with large logic fabric and embedded RAM for signal processing and packet-handling pipelines.
Unique Advantages
- High integration density: 132,540 logic elements and abundant I/O reduce the need for multi-chip solutions, simplifying board design.
- On-chip memory for buffering: Approximately 6.75 Mbits of embedded RAM supports FIFOs and temporary storage for high-throughput data paths.
- Family-proven transceiver technology: Transceiver features such as CDR, dynamic reconfiguration and adaptive equalization address diverse serial protocol needs.
- Industrial operating range: −40 °C to 100 °C and RoHS compliance make the device suitable for industrial deployments requiring extended temperature tolerance.
- Flexible clocking and DSP support (family-level): Multiple clock networks, enhanced PLLs, and high-speed DSP blocks enable complex timing and signal-processing architectures.
- Standard surface-mount BGA package: 1508-BBGA FCBGA package supports compact, high-density board layouts.
Why Choose EP2SGX130GF1508I4N?
The EP2SGX130GF1508I4N positions the Stratix II GX architecture into a high-capacity, industrial-grade FPGA offering that pairs extensive logic resources and on-chip memory with family-level high-speed serial capabilities. It is well suited for engineers designing high-bandwidth communications, backplane, and protocol-bridging systems that require programmable flexibility and robust performance across an extended temperature range.
With its combination of large logic capacity, significant embedded RAM, dense I/O and a standard 1508-BBGA surface-mount package, this device provides a scalable platform for complex system designs while maintaining compatibility with the Stratix II GX feature set.
Request a quote or submit a sales inquiry to evaluate EP2SGX130GF1508I4N for your next high-performance FPGA design.
