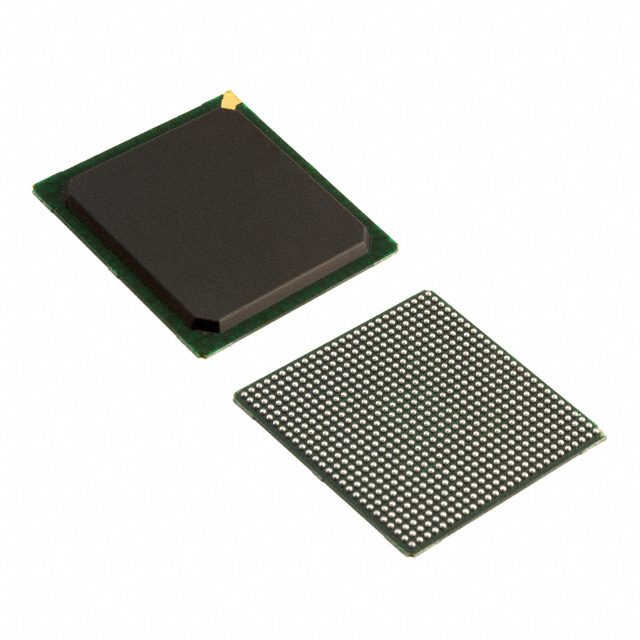

XC2VP40-6FGG676C
| Part Description |
Virtex®-II Pro Field Programmable Gate Array (FPGA) IC 416 3538944 43632 676-BGA |
|---|---|
| Quantity | 2 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 676-FBGA (27x27) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 676-BGA | Number of I/O | 416 | Voltage | 1.425 V - 1.575 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 4848 | Number of Logic Elements/Cells | 43632 | ||
| Number of Gates | N/A | ECCN | 3A001A7A | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 3538944 |
Overview of XC2VP40-6FGG676C – Virtex®-II Pro Field Programmable Gate Array, 676-BGA, 416 I/O
The XC2VP40-6FGG676C is a Virtex®-II Pro platform FPGA in a 676-ball BGA package, designed for mid-to-high-density programmable logic applications. This surface-mount, commercial-grade device provides substantial on-chip resources—including 43,632 logic elements and approximately 3.5 Mbits of embedded memory—paired with a 416-pin I/O count for high-integration system designs.
Supplied by AMD and aligned with the Virtex-II Pro platform specification, the device supports the platform-level feature set described in the family datasheet, making it suitable for applications that require a combination of programmable logic, embedded memory, and extensive I/O connectivity within a standard FBGA footprint.
Key Features
- Logic Capacity 43,632 logic elements provide the programmable fabric needed for complex combinational and sequential logic functions.
- Embedded Memory Approximately 3.5 Mbits of on-chip RAM (3,538,944 total RAM bits) for buffering, FIFOs, and local storage.
- I/O Density 416 user I/O pins support extensive interfacing to peripherals, front-end modules, and board-level signaling.
- Platform Features (family) Virtex-II Pro platform-level features documented in the datasheet include multi-gigabit transceiver support and embedded processor block options for designs referencing family capabilities.
- Package 676-ball BGA (supplier package: 676-FBGA, 27 × 27 mm) optimized for board-level integration and high-density routing.
- Power Supply Core supply voltage range 1.425 V to 1.575 V, enabling controlled power delivery and board power budgeting.
- Mounting & Grade Surface-mount package with commercial operating grade and a specified operating temperature range of 0 °C to 85 °C.
- Environmental Compliance RoHS compliant for lead-free compliance in manufacturing processes.
Typical Applications
- High-speed communications Use the Virtex-II Pro platform features to implement protocol processing and I/O aggregation where dense logic and high I/O counts are required.
- Embedded processing Leverage family-level embedded processor block support (as documented in the Virtex-II Pro datasheet) in designs that combine programmable logic with on-chip processor resources.
- Data buffering and packet processing The combination of ~3.5 Mbits of embedded memory and abundant logic elements suits packet buffering, table lookups, and stream processing tasks.
- Board-level prototyping and system integration 416 I/Os and a standardized 676-FBGA package facilitate integration into complex system boards and prototyping platforms.
Unique Advantages
- High logic density: 43,632 logic elements enable implementation of complex logic, state machines, and custom accelerators without immediate external logic expansion.
- Substantial on-chip memory: Approximately 3.5 Mbits of embedded RAM reduce dependency on external memory for mid-sized buffering and temporary storage tasks.
- Extensive I/O connectivity: 416 I/O pins provide flexibility for interfacing to multiple peripherals, buses, and board-level interfaces.
- Standard FBGA package: The 676-FBGA (27 × 27 mm) package supports high-density board designs and established assembly flows.
- Industry-compliant supply range: Core voltage specified between 1.425 V and 1.575 V enables predictable power design and regulation choices on the board.
- RoHS compliant: Facilitates lead‑free manufacturing and environmental compliance.
Why Choose XC2VP40-6FGG676C?
The XC2VP40-6FGG676C provides a balanced combination of logic capacity, embedded memory, and high I/O density in a commercial-grade, surface-mount FBGA package. It is positioned for designs that require significant programmable resources and extensive board-level interfacing while maintaining predictable power and thermal conditions defined by the device’s commercial operating range.
This device suits engineering teams building mid-to-high complexity systems that benefit from the Virtex-II Pro family architecture and documented platform capabilities. The combination of on-chip memory, large logic fabric, and comprehensive I/O support makes it a practical choice for communication, embedded processing, and system integration projects where these specific device attributes match the design requirements.
If you would like pricing, availability, or a custom quote for XC2VP40-6FGG676C, submit a request to receive a formal quote or product inquiry and our team will respond promptly.
