XC2VP40-7FGG676C

The XC2VP40-7FGG676C is a Virtex®-II Pro family field programmable gate array (FPGA) in a 676-ball fine-pitch BGA package. It combines a high density of programmable logic, substantial on-chip memory, and broad I/O to support platform-level FPGA designs.

This device is suited for applications that require dense logic resources, multiple high-count I/O, and on-chip RAM for buffering and scratch storage. Its platform architecture includes family-level features such as embedded processor support and high-speed serial transceiver capabilities described in the Virtex-II Pro product documentation.

Key Features

• Logic Capacity  43,632 logic elements for implementing complex custom logic and state machines.
• Embedded Memory  Approximately 3.5 Mbits of on-chip RAM (3,538,944 bits) for data buffering, packet storage, and lookup tables.
• I/O Density  416 user I/O pins to support wide parallel interfaces, multiple peripheral connections, and board-level routing flexibility.

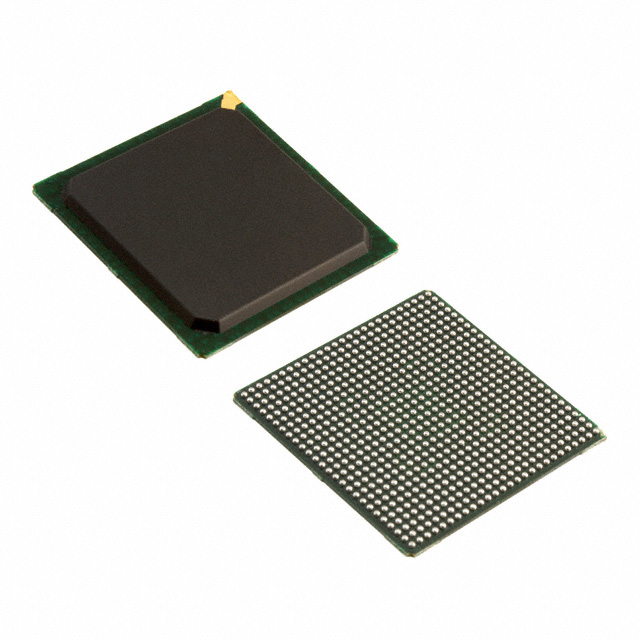

• Packaging  676‑FBGA (27 × 27 mm) surface-mount package, suitable for dense PCB implementations requiring BGA mounting.
• Power  Device core supply range 1.425 V to 1.575 V to match common FPGA power architectures.
• Operating Temperature  Commercial grade, 0 °C to 85 °C for standard commercial-environment deployments.
• Platform Features (Virtex-II Pro)  Family-level features include embedded multi‑gigabit RocketIO transceivers, PowerPC™ processor block options, dedicated 18×18 multiplier blocks, digital clock management, SelectI/O™-Ultra, and digitally controlled impedance (DCI) I/O.
• Compliance  RoHS compliant.

Typical Applications

• High‑speed communications  Use the device’s platform transceiver and dense logic to implement protocol processing, packet handling, and high-throughput link interfacing.
• Embedded processing platforms  Leverage the Virtex-II Pro family’s processor block options for compact SoC-style designs requiring on-chip CPU and programmable logic.
• Digital signal processing  Dedicated multiplier blocks and abundant logic make the device suitable for DSP tasks such as filtering, transforms, and real-time data manipulation.
• Network infrastructure  Large on-chip RAM and high I/O count support buffering and wide parallel interfaces used in switches, routers, and aggregation equipment.

Unique Advantages

• High-density programmable logic: 43,632 logic elements provide the capacity to implement complex custom functions on a single device.
• Substantial on-chip memory: Approximately 3.5 Mbits of embedded RAM reduces external memory dependence for many buffering and table lookup needs.
• Extensive I/O: 416 user I/O pins enable broad peripheral connectivity and flexible board-level partitioning.
• Platform-level feature set: Family capabilities such as RocketIO transceivers and processor block options enable integration of serial links and embedded processing.
• Commercial temperature and surface-mount packaging: 676‑FBGA package and 0 °C to 85 °C rating support standard commercial product deployments.
• Regulatory friendliness: RoHS compliance simplifies environmental qualification for many markets.

Why Choose XC2VP40-7FGG676C?

The XC2VP40-7FGG676C brings a balance of logic density, embedded memory, and I/O capability within the Virtex‑II Pro platform architecture. It is well suited for designers building platform-level FPGAs that require on-chip resources for buffering, signal processing, and complex control logic, with family-level options for embedded processors and high-speed serial interfaces.

Choose this device when you need a mature platform with documented architecture and the hardware resources to consolidate multiple functions onto a single FPGA, reducing board-level complexity and part count.

Please request a quote or submit an inquiry to check availability and begin a procurement conversation for the XC2VP40-7FGG676C.
