XC3190-4PQ160C

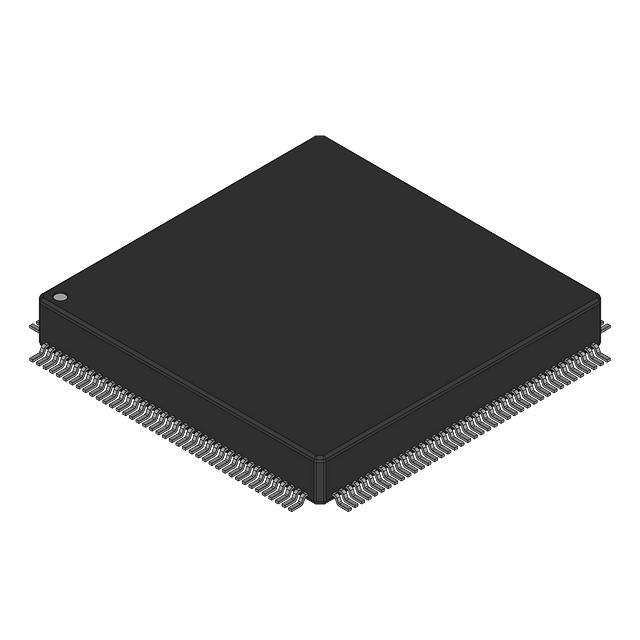

The XC3190-4PQ160C is a Field Programmable Gate Array (FPGA) IC provided in a 160-BQFP surface-mount package. It integrates 320 logic elements, approximately 64 Kbits (64,160 bits) of on-chip RAM and 138 I/O pins, making it suitable for commercial electronic designs that require moderate logic density and flexible I/O capability. The device operates from a 4.75 V to 5.25 V supply and is specified for a commercial temperature range of 0 °C to 70 °C.

Key Features

• Core Logic 320 logic elements and approximately 6,000 gates provide moderate programmable logic density for glue logic, control functions and small-scale custom logic blocks.
• Embedded Memory Approximately 64 Kbits (64,160 bits) of on-chip RAM for small data buffers, state machines and local storage.
• I/O 138 I/O pins to support a wide range of peripheral interfaces and parallel connectivity in a single package.
• Power Single-supply operation from 4.75 V to 5.25 V for compatibility with legacy 5 V systems.
• Package & Mounting 160-BQFP (supplier device package 160-PQFP, 28 × 28 mm) in a surface-mount form factor for PCB space-efficient assembly.
• Operating Range & Grade Commercial grade operation with a specified temperature range of 0 °C to 70 °C.
• Compliance RoHS compliant, meeting common environmental requirements for electronic assemblies.

Typical Applications

• Embedded Control and Glue Logic Implement small-scale programmable control, custom timing and interface logic using the integrated logic elements and I/O resources.
• Prototyping and Development Compact logic and memory resources in a standard PQFP package make the device suitable for prototyping and design validation on commercial platforms.
• Parallel and Peripheral Interfacing High I/O count supports parallel buses, keypad/display interfaces and general-purpose peripheral connections.

Unique Advantages

• Balanced Logic Density: 320 logic elements and ~6,000 gates deliver practical programmability for moderate-complexity designs without excessive resource overhead.
• Generous I/O Count: 138 I/O pins reduce the need for external I/O expanders and simplify board-level connectivity.
• On-Chip RAM: Approximately 64 Kbits of embedded memory provides local buffering and state storage to streamline small data-path implementations.
• 5 V Supply Compatibility: 4.75 V to 5.25 V supply range ensures straightforward integration into existing 5 V system architectures.
• Standard Surface-Mount Package: 160-PQFP (28 × 28 mm) enables dense PCB layouts and automated assembly processes.
• RoHS Compliant: Meets lead-free and restricted-substance requirements for modern electronics manufacturing.

Why Choose XC3190-4PQ160C?

The XC3190-4PQ160C combines a practical set of programmable logic resources, on-chip RAM and a high I/O count in a readily assembled 160-BQFP surface-mount package. Its 5 V supply compatibility and commercial temperature rating make it a straightforward choice for designers needing moderate logic density and flexible interfacing in commercial electronic products. Manufactured by AMD, the part offers a compact, RoHS-compliant option for applications where space, I/O and local memory are primary considerations.

Request a quote or submit an inquiry to receive pricing and availability information for the XC3190-4PQ160C. Our team can provide lead-time details and assist with volume quoting.
