XC3190-5PC84I

The XC3190-5PC84I is a field programmable gate array (FPGA) device from AMD featuring 320 logic elements and approximately 64.16kbits (64160 bits) of on-chip RAM. Designed for surface-mount applications, it provides 70 general-purpose I/O and a standard 4.5 V to 5.5 V supply window, making it suitable for embedded logic and I/O control in industrial environments.

With a compact 84-lead PLCC/J-lead package and an industrial operating range of -40°C to 85°C, the device targets low- to mid-density programmable logic tasks where a combination of on-chip memory, I/O count, and legacy 5 V compatibility are required.

Key Features

• Core Logic 320 logic elements provide reconfigurable digital logic capacity for glue logic, state machines, and small custom IP blocks.
• Embedded Memory Approximately 0.064 Mbits (64160 bits) of on-chip RAM for small buffers, FIFOs, and configuration storage.
• I/O Count 70 available I/O pins support a variety of peripheral interfaces and parallel signal groups.
• Gate Equivalent Approximately 6,000 gates of logic-density equivalence to help size designs and estimate resource needs.
• Power Operates from a 4.5 V to 5.5 V supply window for compatibility with 5 V digital systems.

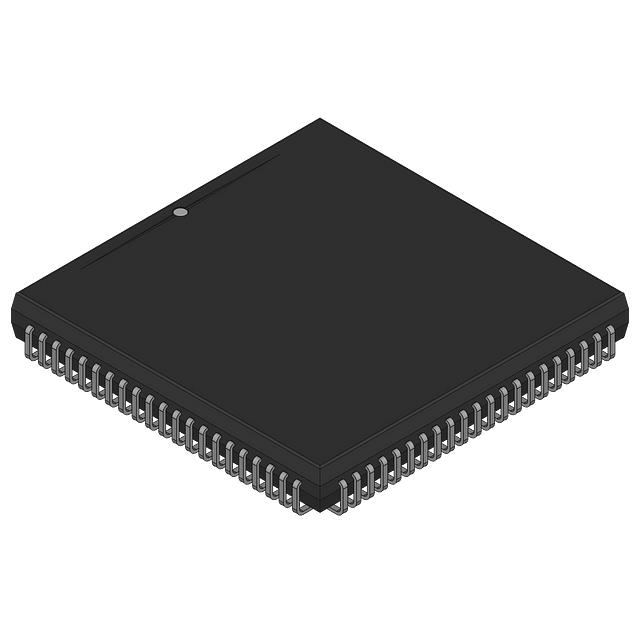

• Package and Mounting Surface-mount 84-LCC (J-Lead) / 84-PLCC (29.31×29.31 mm) package for compact board-level integration.
• Industrial Temperature Range Rated for operation from -40°C to 85°C for use in industrial-grade applications.
• RoHS Compliant Meets RoHS requirements for lead-free manufacturing and environmental compliance.

Typical Applications

• Industrial Control — Programmable logic for control sequencing, I/O aggregation, and simple motion or machine control functions within industrial temperature ranges.
• I/O Expansion & Glue Logic — Acts as glue logic between legacy 5 V systems and modern peripherals, consolidating discrete functions into a single programmable device.
• Sensor Interfacing — Local data handling, buffering and basic preprocessing using embedded RAM and multiple I/O lines for sensor arrays and instrumentation.
• Prototyping & Educational Projects — Suited for low-density FPGA prototypes and learning platforms that require a compact PLCC package and straightforward 5 V operation.

Unique Advantages

• Compact, surface-mount PLCC package: 84-lead PLCC/J-lead footprint supports dense PCB layouts while maintaining robust mechanical attachment.
• Standard 5 V compatibility: 4.5 V to 5.5 V supply range enables direct integration with existing 5 V digital systems without additional level translation.
• Balanced logic and memory resources: 320 logic elements paired with approximately 0.064 Mbits of on-chip RAM offers an effective mix for small embedded logic tasks and buffering.
• Industrial-rated thermal range: -40°C to 85°C operation supports deployment in a wide range of industrial environments.
• RoHS compliant: Facilitates environmentally conscious manufacturing and regulatory adherence.

Why Choose XC3190-5PC84I?

The XC3190-5PC84I provides a practical, low- to mid-density FPGA option for designers who need a compact, surface-mount programmable device with a 5 V supply profile and industrial temperature capability. Its combination of 320 logic elements, 70 I/O, and on-chip memory makes it well suited for embedded control, I/O consolidation, and small-scale data handling tasks.

For engineers working on industrial or legacy 5 V systems, this AMD FPGA offers predictable integration characteristics and environmental robustness, delivering a balance of integration and reliability for long-running or space-constrained designs.

Request a quote or submit a product inquiry today to check availability and pricing for the XC3190-5PC84I.
