XC3190-5PQ160I

The XC3190-5PQ160I is an AMD XC3100 series field programmable gate array (FPGA) offered in a 160-pin BQFP package. This surface-mount, industrial-grade FPGA provides on-chip logic, memory and I/O resources for embedded designs that require reconfigurable digital logic.

Key hardware characteristics include 320 logic elements, approximately 0.064 Mbits (64,160 bits) of embedded memory, 138 I/Os and a specified operating range of 4.5 V to 5.5 V and –40 °C to 85 °C, making it suitable for industrial-temperature applications that require RoHS compliance.

Key Features

• Core Logic  320 logic elements and approximately 6,000 gates provide a compact programmable fabric for custom logic implementation.
• Embedded Memory  Approximately 0.064 Mbits (64,160 bits) of on-chip RAM to support local data buffering and state storage.
• I/O Density  138 user I/Os to interface with peripherals, sensors and external devices in complex embedded systems.
• Power  Single-supply operation from 4.5 V to 5.5 V to match standard 5 V system domains.

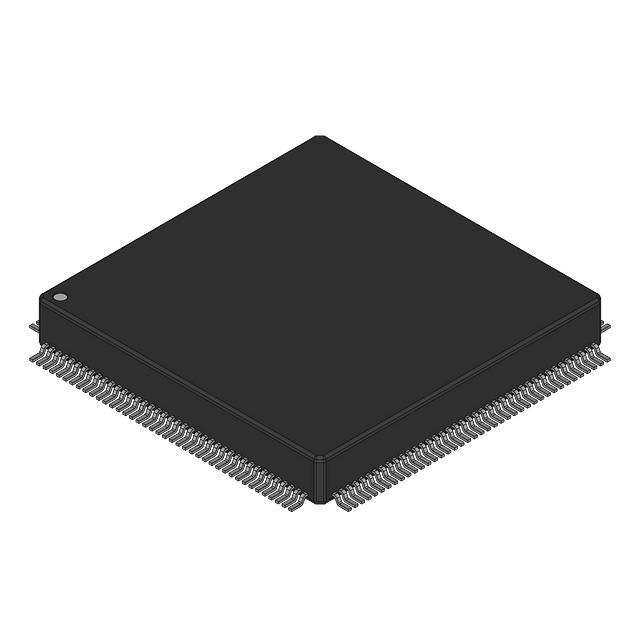

• Package & Mounting  160-BQFP surface-mount package (supplier device package: 160-PQFP, 28 × 28 mm) for board-level integration.
• Industrial Temperature Range  Rated for –40 °C to 85 °C to meet industrial operating requirements.
• Environmental Compliance  RoHS compliant to support regulatory requirements for restricted substances.

Unique Advantages

• Compact programmable logic: 320 logic elements and 6,000 gates offer a small-footprint FPGA option for designs needing modest logic capacity.
• On-chip RAM for local buffering: 64,160 bits of embedded memory reduce external memory dependency for control and data paths.
• High I/O count: 138 I/Os enable flexible interfacing with multiple peripherals and external devices without additional buffers.
• Industrial readiness: –40 °C to 85 °C rating supports deployment in industrial-temperature environments.
• Standard 5 V supply: 4.5 V to 5.5 V operation simplifies integration into existing 5 V systems.
• Surface-mount, space-efficient package: 160-BQFP (160-PQFP, 28 × 28 mm) offers a balance between pin count and PCB area for densely packed boards.

Why Choose XC3190-5PQ160I?

The XC3190-5PQ160I combines a compact programmable fabric with substantial I/O and embedded memory in a 160-pin surface-mount package from AMD. Its industrial temperature rating and RoHS compliance make it a practical choice for embedded systems that require reconfigurable logic within standard 5 V supply domains.

This FPGA is well suited to designs that need a reliable, modest-capacity programmable device—providing measurable on-chip resources (320 logic elements, ~64 kbits RAM, 138 I/Os) while simplifying board-level integration through a common BQFP footprint.

Request a quote or submit an inquiry to obtain pricing and availability for the XC3190-5PQ160I.
