XC4VFX40-10FFG1152C

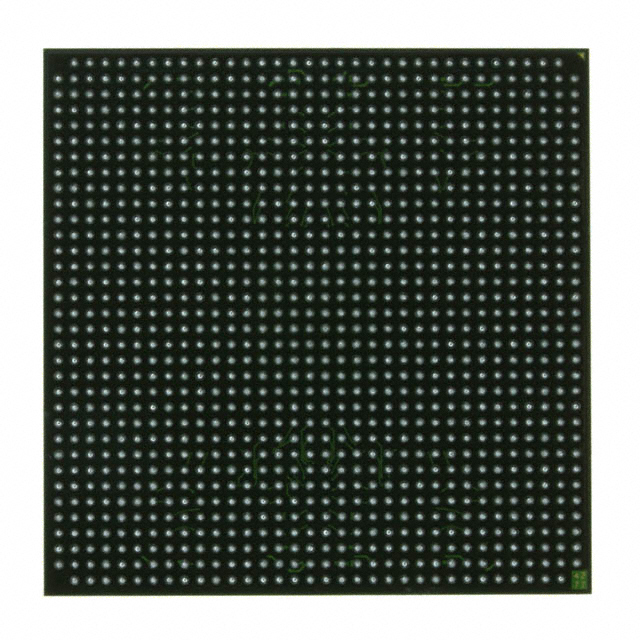

The XC4VFX40-10FFG1152C is a Virtex-4 FX field programmable gate array from AMD. It integrates 41,904 logic elements, approximately 2.65 Mbits of embedded memory, and 448 user I/O in a 1152-ball FCBGA package.

Designed as a commercial-grade programmable logic device, this FPGA combines high logic density and on-chip memory with a compact surface-mount FCBGA footprint suitable for complex digital designs requiring significant I/O capacity.

Key Features

• Core and Logic 41,904 logic elements provide substantial fabric capacity for implementing complex digital functions and custom logic blocks.
• Embedded Memory Approximately 2.65 Mbits of on-chip RAM supports local buffering, FIFOs, and data storage close to logic resources.
• I/O and Connectivity 448 user I/O pins enable wide parallel interfaces, multiple bus connections, and high-pin-count system integration.
• Package and Mounting 1152-FCBGA (35×35) ball grid array in a surface-mount form factor for dense board-level integration.
• Power Core supply voltage range of 1.14 V to 1.26 V to match system power-architecture requirements.
• Operating Range Commercial operating temperature range from 0 °C to 85 °C for standard commercial applications.
• Compliance RoHS compliant, meeting common environmental requirements for lead-free assembly.

Typical Applications

• Custom digital logic and prototyping — Use the programmable fabric and high logic element count to implement and iterate complex digital designs.
• High-density I/O interfaces — Leverage 448 user I/O pins for multi-channel data buses, protocol bridging, and parallel interfaces.
• Embedded systems with on-chip memory — Utilize approximately 2.65 Mbits of embedded RAM for local buffering and data handling within embedded designs.

Unique Advantages

• High logic capacity: 41,904 logic elements enable implementation of extensive custom logic without immediate off-chip resources.
• Substantial embedded memory: Approximately 2.65 Mbits of on-chip RAM reduces dependence on external memory for many buffering and storage needs.
• Large I/O count: 448 user I/O pins allow flexible interfacing and support for complex connectivity requirements.
• Compact FCBGA package: 1152-ball FCBGA (35×35) delivers high-density integration suitable for space-constrained PCBs.
• Defined supply and temperature specs: Clear core voltage range (1.14 V–1.26 V) and commercial temperature rating (0 °C–85 °C) simplify system power and thermal planning.
• RoHS compliant: Facilitates lead-free assembly and compliance with common environmental regulations.

Why Choose XC4VFX40-10FFG1152C?

The XC4VFX40-10FFG1152C positions itself as a commercially graded Virtex-4 FX FPGA that balances high logic density, on-chip memory, and extensive I/O in a compact FCBGA package. Its specification set supports designs that require significant programmable logic, embedded RAM, and a large number of external interfaces while providing defined power and temperature parameters for system integration.

This device is suited to engineers and teams implementing complex digital systems who need a scalable, high-capacity programmable solution with clear electrical and mechanical characteristics and RoHS compliance for lead-free manufacturing.
