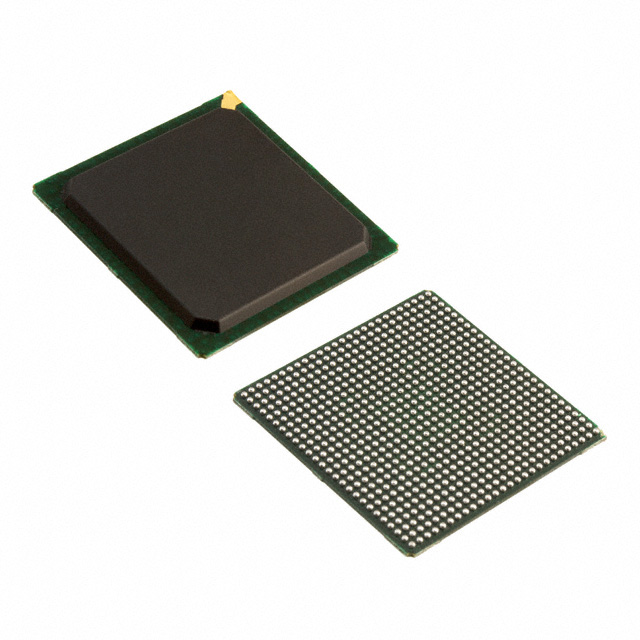

XC6SLX75-N3FGG676C

IC FPGA 408 I/O 676FBGA
Part Description

Spartan®-6 LX Field Programmable Gate Array (FPGA) IC 408 3170304 74637 676-BGA

Quantity 770 Available (as of October 8, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerAMD
Manufacturing StatusActive
Manufacturer Standard Lead Time12 Weeks
Datasheet

Specifications & Environmental

Device Package676-FBGA (27x27)GradeCommercialOperating Temperature0°C – 85°C
Package / Case676-BGANumber of I/O408Voltage1.14 V - 1.26 V
Mounting MethodSurface MountRoHS ComplianceROHS3 CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs5831Number of Logic Elements/Cells74637
Number of GatesN/AECCN3A991DHTS Code8542.39.0001
QualificationN/ATotal RAM Bits3170304

Overview of XC6SLX75-N3FGG676C – Spartan®-6 LX Field Programmable Gate Array (FPGA) IC 408 3170304 74637 676-BGA

The XC6SLX75-N3FGG676C is a Spartan®-6 LX Field Programmable Gate Array (FPGA) provided in a 676-BGA package. Designed for commercial applications, it delivers a balance of programmable logic capacity, on-chip memory, and high I/O count for embedded and board-level system designs.

With a defined core supply voltage range and a commercial operating temperature window, this device is intended for designers who need predictable electrical characteristics and a compact BGA footprint for surface-mount assembly.

Key Features

  • FPGA Core Spartan-6 LX architecture in a Field Programmable Gate Array form factor for programmable logic implementation.
  • Logic Capacity Approximately 74,637 logic elements to implement complex combinational and sequential logic.
  • Embedded Memory Approximately 3.17 Mbits of on-chip RAM for buffering, packet storage, and state retention.
  • I/O Density 408 user I/O pins to support multiple interfaces and peripheral connections.
  • Power Core voltage supply range of 1.14 V to 1.26 V to match system power rails and validate power budgeting.
  • Package & Mounting 676-FBGA (27×27) package, 676-BGA footprint, designed for surface-mount assembly on compact PCBs.
  • Operating Conditions Commercial grade with an operating temperature range of 0 °C to 85 °C.
  • Environmental Compliance RoHS compliant to support regulatory requirements for lead-free manufacturing.

Typical Applications

  • Commercial Embedded Systems — Implement custom control logic, protocol handling, and glue logic in space-conscious commercial designs.
  • I/O-Intensive Interfaces — Leverage 408 I/Os to connect sensors, peripherals, and multiple bus interfaces on a single device.
  • Memory-Centric Functions — Use approximately 3.17 Mbits of on-chip RAM for buffering, FIFOs, and temporary data storage in streaming or packet-processing tasks.
  • Compact Board Designs — The 676-FBGA (27×27) package enables high-density PCB layouts where surface-mount BGA components are required.

Unique Advantages

  • High Logic Capacity: Approximately 74,637 logic elements provide headroom for sizeable custom logic implementations without external logic chips.
  • Substantial Embedded Memory: About 3.17 Mbits of on-chip RAM reduces reliance on external memory for many buffering and state-storage needs.
  • Extensive I/O Count: 408 I/Os simplify interfacing multiple peripherals and interfaces directly to the FPGA.
  • Compact, Serviceable Package: 676-FBGA (27×27) offers a compact footprint suitable for modern PCB assemblies while supporting surface-mount manufacturing.
  • Commercial-Grade Specification: Rated for 0 °C to 85 °C operation and RoHS compliance for standard commercial product deployments.
  • Predictable Power Requirements: Narrow core voltage range of 1.14 V to 1.26 V aids in power supply selection and system power design.

Why Choose XC6SLX75-N3FGG676C?

The XC6SLX75-N3FGG676C positions itself as a capable commercial-grade FPGA option that balances logic density, embedded memory, and high I/O availability in a compact BGA package. It is suitable for designers building commercial embedded systems, I/O-rich interfaces, and compact board-level solutions that require on-chip RAM and significant programmable logic.

By combining substantial logic resources, ample on-chip memory, and a high pin count in a surface-mount 676-FBGA package, this device supports scalable designs and straightforward integration into existing commercial product development flows.

Request a quote or submit an inquiry to receive pricing, availability, and lead-time information for the XC6SLX75-N3FGG676C.

Request a Quote

















    No file selected



    Our team will respond within 24 hours.


    I agree to receive newsletters and promotional emails. I can unsubscribe at any time.
