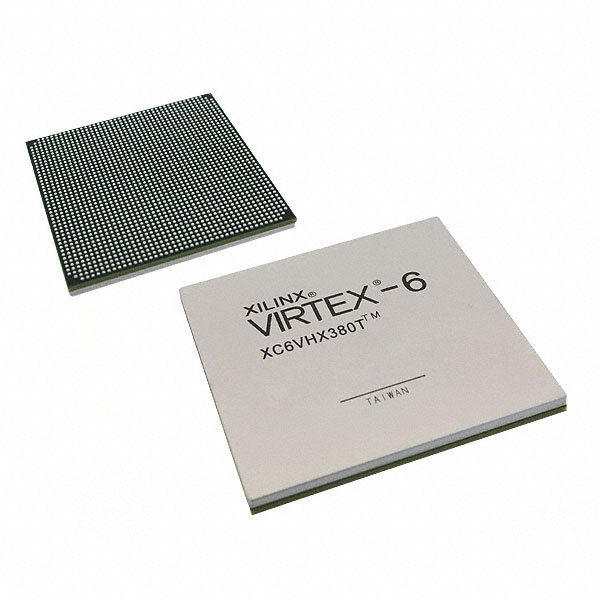

XC6VHX380T-1FFG1923C

The XC6VHX380T-1FFG1923C is a Virtex-6 HXT field programmable gate array (FPGA) from AMD. It combines high logic capacity with substantial on-chip memory and a large I/O complement for complex, high-density programmable designs.

This surface-mount FCBGA device features 382,464 logic cells and 29,880 logic elements, approximately 28.3 Mbits of embedded memory, 720 I/O, and a 1924-ball FCBGA (45 × 45 mm) package. The device operates from a core supply of 0.95 V to 1.05 V and is rated for commercial temperature operation from 0 °C to 85 °C.

Key Features

• Core Logic  Provides 382,464 logic cells and 29,880 logic elements to implement large-scale programmable logic and control structures.
• Embedded Memory  Approximately 28.3 Mbits of on-chip RAM to support data buffering, lookup tables, and local storage for complex designs.
• I/O Density  720 I/O pins support extensive external connectivity and parallel interfacing requirements.
• Package & Mounting  1924-ball FCBGA package (45 × 45 mm) in a 1924-BBGA form factor designed for surface-mount assembly.
• Power  Core supply range specified at 0.95 V to 1.05 V for device operation.
• Temperature & Grade  Commercial-grade device rated for 0 °C to 85 °C operating temperature.
• Regulatory  RoHS compliant.

Unique Advantages

• High logic capacity: 382,464 logic cells support designs with substantial combinational and sequential logic requirements.
• Significant on-chip memory: Approximately 28.3 Mbits of embedded RAM reduces dependence on external memory for many buffering and storage tasks.
• Extensive I/O count: 720 I/O pins enable broad peripheral and interface integration without immediate need for external multiplexing.
• Dense, surface-mount package: 1924-ball FCBGA (45 × 45 mm) allows a compact board footprint while providing a high pin count.
• Commercial operating range: Specified 0 °C to 85 °C temperature rating aligns with standard commercial embedded applications.
• RoHS compliant: Meets lead-free and restricted-substance requirements for commercial products.

Why Choose XC6VHX380T-1FFG1923C?

The XC6VHX380T-1FFG1923C positions itself as a high-capacity, commercially rated FPGA suitable for complex, high-density designs that require large logic resources, ample on-chip memory, and a high I/O count. Its 1924-ball FCBGA package provides a dense integration option for compact system boards.

Designers and procurement teams seeking a commercially graded Virtex-6 HXT device with verifiable logic, memory, I/O, and package specifications will find this part appropriate for scalable, high-performance programmable logic implementations backed by AMD's product family documentation.

Request a quote or submit a quote for the XC6VHX380T-1FFG1923C to receive pricing and availability information specific to your project needs.
