XC6VHX380T-1FFG1924C

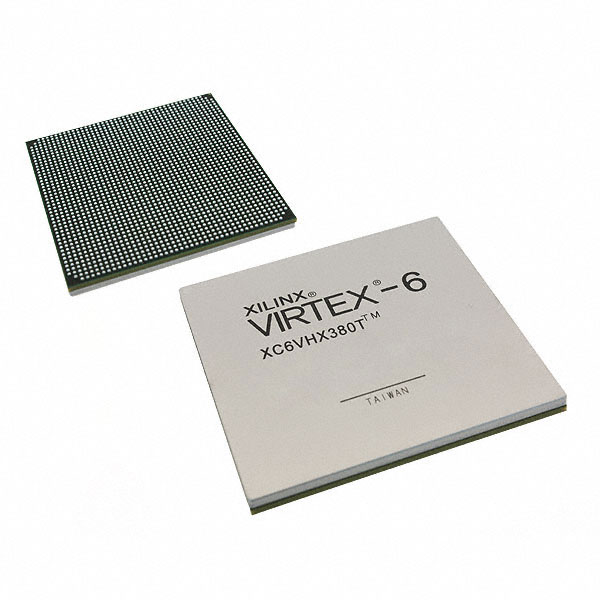

The XC6VHX380T-1FFG1924C is a Virtex-6 HXT Field Programmable Gate Array (FPGA) IC from AMD, supplied in a 1924-FCBGA package. It delivers large logic capacity, substantial on-chip memory, and a high count of user I/O for complex digital designs.

Targeted at commercial-grade applications, this device is suited to designs that require dense logic integration, abundant embedded memory, and significant I/O connectivity while operating within a 0 °C to 85 °C temperature range and a 950 mV to 1.05 V core supply window.

Key Features

• Core / Architecture  Virtex-6 HXT FPGA architecture provided in the XC6VHX380T device from AMD.
• Logic Capacity  382,464 logic elements to implement large or highly parallel digital logic functions.
• Embedded Memory  Approximately 28.3 Mbits of on-chip RAM for buffering, look-up tables, and algorithm state storage.
• I/O Resources  640 user I/O pins to support wide interfaces and multiple external connections.
• Package  1924-BBGA / 1924-FCBGA packaging (listed as 1924-FCBGA (45x45)) suitable for surface-mount board designs.
• Power  Core voltage supply range of 950 mV to 1.05 V for device operation.
• Thermal and Grade  Commercial-grade device rated for operation from 0 °C to 85 °C.
• Mounting & Compliance  Surface-mount device construction and RoHS compliance for lead-free manufacturing.

Typical Applications

• High-density digital logic implementations  Use the device where extensive programmable logic is required to consolidate complex functions into a single FPGA.
• Memory-intensive algorithm acceleration  Leverage approximately 28.3 Mbits of embedded RAM for buffering, data paths, and algorithm state management.
• I/O-heavy front-end and interface aggregation  Employ the 640 user I/Os to connect multiple high-pin-count interfaces or to aggregate many signals on a single device.

Unique Advantages

• Large on-chip logic: 382,464 logic elements enable implementation of extensive digital designs without partitioning across multiple devices.
• Substantial embedded memory: Approximately 28.3 Mbits of RAM reduce dependence on external memory for many buffering and caching tasks.
• High I/O count: 640 user I/Os provide flexibility to interface with numerous peripherals and I/O standards.
• Commercial-grade thermal range: Rated for 0 °C to 85 °C operation to match typical commercial system environments.
• Surface-mount FCBGA package: 1924-pin FCBGA format supports compact board designs while delivering high pin density.
• RoHS compliant: Enables use in lead-free manufacturing processes.

Why Choose XC6VHX380T-1FFG1924C?

The XC6VHX380T-1FFG1924C positions itself as a high-capacity, commercial-grade FPGA option for designs that demand extensive programmable logic, significant embedded memory, and a large number of I/Os. Its Virtex-6 HXT FPGA architecture and 1924-FCBGA packaging deliver a combination of integration and I/O density suitable for consolidating complex digital functions onto a single device.

This device is well suited for engineering teams and procurement seeking a commercially rated FPGA from AMD that balances logic resources, on-chip memory, and connectivity for scalable, board-level integration while meeting RoHS requirements.

Request a quote or submit an inquiry to receive pricing and availability information for the XC6VHX380T-1FFG1924C. Our team can help you evaluate this Virtex-6 HXT FPGA for your specific design requirements.
