XC6VHX380T-2FF1923CES9945

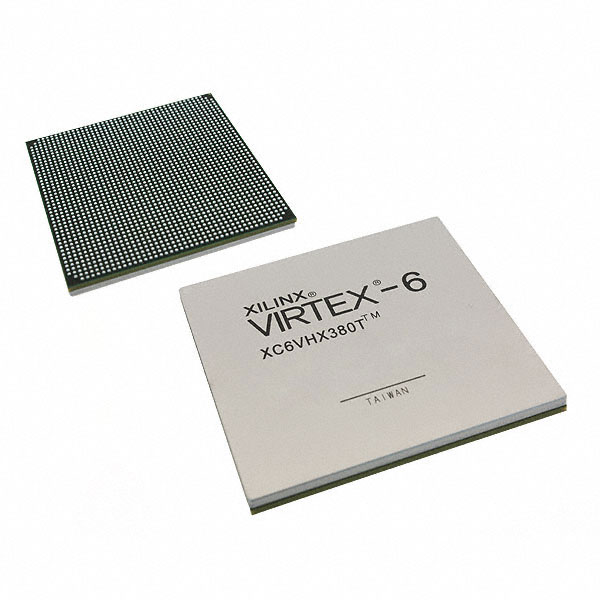

The XC6VHX380T-2FF1923CES9945 is a Virtex®-6 HXT field programmable gate array (FPGA) IC from AMD. It delivers high logic capacity and substantial on-chip memory in a surface-mount FCBGA package.

Key hardware characteristics include approximately 382,464 logic elements, approximately 28.3 Mbits of embedded memory, and 720 I/O pins. The device is supplied with a core voltage range of 0.95 V to 1.05 V and is specified for commercial operating temperatures from 0 °C to 85 °C.

Key Features

• Core and Logic Capacity  Approximately 382,464 logic elements provide dense programmable logic resources for complex designs.
• Embedded Memory  Approximately 28.3 Mbits of on-chip RAM to support buffering, FIFOs, and on-chip data storage.
• I/O Count  720 available I/O pins to support extensive interfacing and parallel connectivity.
• Package and Mounting  1924-FCBGA package (45 × 45 mm) in a 1924-BBGA footprint; designed for surface-mount assembly.
• Power Supply  Core voltage specified from 0.95 V to 1.05 V to match system power rails and regulator designs.
• Temperature and Grade  Commercial-grade device with an operating range of 0 °C to 85 °C.
• Environmental Compliance  RoHS-compliant design for regulatory and assembly considerations.

Unique Advantages

• High logic density: Large logic element count enables consolidation of complex functions into a single FPGA, reducing system-level component count.
• Substantial on-chip memory: Approximately 28.3 Mbits of embedded RAM supports data buffering and local storage without external memory.
• Extensive I/O capability: 720 I/O pins allow broad interfacing options for parallel buses, sensors, and external peripherals.
• Compact FCBGA package: 1924-FCBGA (45×45 mm) provides a high-pin-count solution in a standardized surface-mount form factor.
• Defined voltage and thermal envelope: Narrow core supply range (0.95–1.05 V) and commercial temperature rating simplify power and thermal planning.
• RoHS compliant: Facilitates assembly and regulatory compliance in commercial product builds.

Why Choose XC6VHX380T-2FF1923CES9945?

The XC6VHX380T-2FF1923CES9945 positions itself as a high-capacity Virtex-6 HXT FPGA tailored for designs requiring significant programmable logic, on-chip memory, and a large number of I/O signals within a surface-mount FCBGA package. Its combination of approximately 382,464 logic elements and approximately 28.3 Mbits of embedded RAM supports complex, memory-intensive functions while minimizing external components.

As a commercial-grade, RoHS-compliant FPGA manufactured by AMD, the device is appropriate for product designs that prioritize integration density, predictable power requirements (0.95–1.05 V core), and a defined operating temperature range (0 °C to 85 °C).

Request a quote or submit a purchase inquiry to obtain pricing, availability, and ordering information for the XC6VHX380T-2FF1923CES9945.
