XC6VHX380T-2FFG1923C

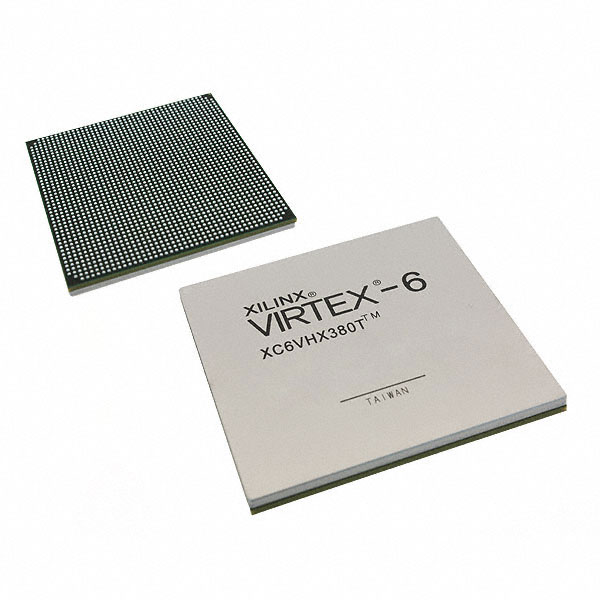

The XC6VHX380T-2FFG1923C is an AMD Virtex®-6 HXT field programmable gate array (FPGA) supplied in a 1924-FCBGA package. It delivers a large programmable fabric with substantial on-chip memory and high I/O density for applications that require high integration and flexible hardware customization.

With approximately 382,464 logic elements, roughly 28.3 Mbits of embedded memory and 720 user I/Os, this commercial-grade FPGA is designed for use in systems that need significant logic capacity, embedded RAM, and extensive I/O routing while operating within standard commercial temperature and supply ranges.

Key Features

• Core Logic  Approximately 382,464 logic elements provide extensive programmable fabric for complex digital designs and custom hardware acceleration.
• Embedded Memory  Approximately 28.3 Mbits of on-chip RAM support large buffers, FIFOs, and data-path storage without external memory.
• I/O Density  720 user I/Os enable broad peripheral and interface connectivity for multi-channel, high-pin-count designs.
• Package  1924-FCBGA (45×45) package case, surface-mount mounting type, suitable for high-density board-level integration.
• Power  Core voltage supply range of 950 mV to 1.05 V provides the required operating window for the device core.
• Operating Range & Grade  Commercial-grade device rated for operation from 0 °C to 85 °C and RoHS compliant for regulatory conformance.

Typical Applications

• High-density digital processing  Large logic capacity and on-chip RAM support custom data-paths and compute-intensive processing implemented in programmable logic.
• Multi-channel interface aggregation  High I/O count enables bridging and aggregating numerous serial or parallel interfaces on a single device.
• Prototyping and hardware customization  The programmable fabric and abundant resources make the device suitable for iterative hardware development and custom IP integration.

Unique Advantages

• High programmable capacity: Approximately 382,464 logic elements enable complex system integration into a single FPGA, reducing the need for multiple discrete devices.
• Substantial on-chip memory: Approximately 28.3 Mbits of embedded RAM lowers external memory dependence and simplifies board-level memory architecture.
• Extensive I/O connectivity: 720 I/Os provide flexibility to connect numerous peripherals and interfaces directly to the FPGA fabric.
• Compact, surface-mount package: 1924-FCBGA (45×45) packaging supports high-density PCB layouts while maintaining robust mounting for complex systems.
• Commercial temperature range: Rated 0 °C to 85 °C to meet standard commercial deployment requirements.
• Regulatory compliance: RoHS compliant to support environmentally conscious designs and manufacturing workflows.

Why Choose XC6VHX380T-2FFG1923C?

The XC6VHX380T-2FFG1923C balances large-scale programmable logic, significant on-chip memory, and high I/O density in a single commercial-grade FCBGA package. It is well suited for designers who need to integrate complex digital functions and multiple interfaces into a compact board footprint while keeping power and supply requirements within standard core-voltage ranges.

This device is appropriate for teams developing high-density digital systems, custom hardware accelerators, or prototypes that require scalability within the Virtex®-6 HXT family and the support of a mature FPGA ecosystem.

Request a quote or submit an inquiry to receive pricing, availability, and technical support information for XC6VHX380T-2FFG1923C.
