XC6VLX240T-1FFG1759C

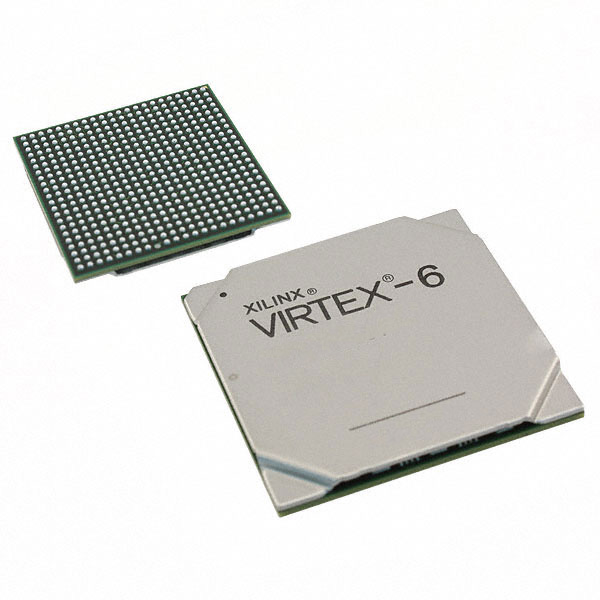

The XC6VLX240T-1FFG1759C is a Virtex®-6 LXT field programmable gate array (FPGA) from AMD, delivered in a high-density 1759-FCBGA / 1759-BBGA package. It provides a combination of large logic capacity, embedded memory, and a high I/O count for complex programmable designs.

With 18,840 CLBs and 241,152 logic elements, plus approximately 15.3 Mbits of on-chip RAM and 720 I/O pins, this device is intended for applications that require substantial logic resources and dense connectivity while operating within a commercial temperature and standard supply range.

Key Features

• Core Logic  Provides 18,840 CLBs delivering 241,152 logic elements to implement complex digital functions and custom logic architectures.
• Embedded Memory  Approximately 15.3 Mbits of on-chip RAM for data buffering, lookup tables, and state storage within the FPGA fabric.
• I/O Density  720 I/O pins to support extensive peripheral interfacing, multi-channel connectivity, and high-pin-count designs.
• Package and Mounting  Available in 1759-BBGA / FCBGA form factor; supplier device package listed as 1759-FCBGA (42.5x42.5). Surface-mount device.
• Supply Voltage  Operates from 950 mV to 1.05 V, supporting designs targeting this core supply range.
• Temperature Range  Commercial-grade operation from 0 °C to 85 °C for standard ambient environments.
• Standards Compliance  RoHS compliant, meeting common environmental and hazardous-substance requirements.

Typical Applications

• Complex Digital Processing  Large logic capacity and embedded memory make this FPGA suitable for implementing extensive digital signal processing chains and custom datapaths.
• High-density I/O Systems  720 I/O pins enable aggregation and routing of numerous interfaces, useful for multi-channel or multi-board systems.
• Custom Logic Prototyping  Ample CLBs and logic elements support hardware prototyping and validation of large-scale, application-specific logic blocks.
• Memory-intensive Functions  On-chip RAM resources support buffering, LUT-based storage, and intermediate data staging within the programmable fabric.

Unique Advantages

• High Logic Capacity: 241,152 logic elements and 18,840 CLBs provide the headroom needed for large custom logic implementations.
• Significant On-chip Memory: Approximately 15.3 Mbits of embedded RAM reduces dependence on external memory for many buffering and caching tasks.
• Extensive Connectivity: 720 I/O pins allow flexible interfacing with multiple peripherals and high-channel-count designs.
• Commercial Temperature Suitability: Rated for 0 °C to 85 °C operation to match standard commercial deployment environments.
• RoHS Compliance: Meets RoHS requirements for designs targeting environmental and regulatory considerations.
• Industry Manufacturer: Supplied by AMD, offering access to established documentation and product support resources.

Why Choose XC6VLX240T-1FFG1759C?

The XC6VLX240T-1FFG1759C positions itself as a high-capacity Virtex®-6 LXT FPGA option for projects that demand large logic arrays, substantial embedded memory, and high I/O counts within a commercial operating range. Its combination of 18,840 CLBs, 241,152 logic elements, and approximately 15.3 Mbits of on-chip RAM supports complex designs that require both compute fabric and internal storage.

This device is suited to design teams and procurement seeking a robust, high-density FPGA platform from a recognized manufacturer, with the package and electrical characteristics necessary for integration into surface-mount, board-level systems. The RoHS compliance and defined operating voltage and temperature ranges help ensure predictable behavior in standard commercial applications.

Request a quote or submit an inquiry to receive pricing, availability, and additional ordering information for the XC6VLX240T-1FFG1759C.
