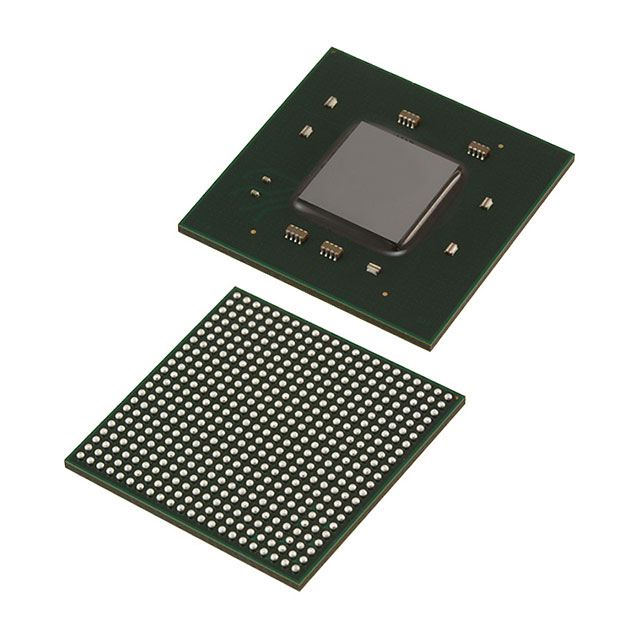

XC7K160T-1FBG484C

The XC7K160T-1FBG484C is a commercial-grade Kintex®-7 field programmable gate array (FPGA) from AMD. It delivers a high-density programmable fabric with 162,240 logic elements and approximately 11.98 Mbits of embedded memory (11,980,800 bits) for complex digital designs.

Designed for surface-mount applications, this device provides 285 user I/O lines and operates with a core supply range of 0.970 V to 1.03 V. The package is a 484-ball FCBGA (23 × 23), and the device is specified for 0 °C to 85 °C operation and RoHS compliance.

Key Features

• Core Logic 162,240 logic elements for high-density implementations and complex combinational and sequential logic.
• Embedded Memory Approximately 11.98 Mbits of on-chip RAM (11,980,800 bits) to support buffering, LUT-based storage, and local data structures without external memory.
• Programmable I/O 285 available I/O pins to connect a wide range of peripherals and interfaces directly to the FPGA fabric.
• Power Core voltage supply range specified from 0.970 V to 1.03 V for the device core.
• Package & Mounting 484-ball FCBGA package (484-BBGA) in a 23 × 23 format, provided as a surface-mount device for compact board designs.
• Operating Conditions Commercial-grade temperature range specified from 0 °C to 85 °C.
• Environmental Compliance RoHS-compliant finish and materials.

Typical Applications

• High-density digital logic — Implement complex state machines, custom processing pipelines, and high-parallelism logic using the device's 162,240 logic elements and abundant embedded memory.
• Data buffering and local storage — Use approximately 11.98 Mbits of on-chip RAM for packet buffering, FIFOs, and temporary data storage close to logic.
• Flexible I/O interfacing — Leverage 285 I/O pins to integrate multiple sensors, controllers, or external logic devices directly with the FPGA fabric.

Unique Advantages

• High logic density: 162,240 logic elements enable consolidation of complex functions into a single device, reducing external logic.
• Substantial embedded memory: Approximately 11.98 Mbits of on-chip RAM supports local buffering and reduces dependence on external memory components.
• Broad I/O count: 285 user I/Os provide flexibility for multi-channel interfacing and board-level integration.
• Compact FCBGA package: 484-ball (23 × 23) FCBGA delivers a high-pin-count solution in a surface-mount form factor suitable for space-constrained designs.
• Defined commercial operating range: Specified 0 °C to 85 °C operation and RoHS compliance support standard commercial product requirements.
• Controlled core power range: Core voltage specified between 0.970 V and 1.03 V for predictable power planning and supply design.

Why Choose XC7K160T-1FBG484C?

The XC7K160T-1FBG484C occupies a position for commercial designs that require significant on-chip logic capacity, ample embedded memory, and a high I/O count in a compact FCBGA package. Its specifications — including 162,240 logic elements, approximately 11.98 Mbits of embedded RAM, 285 I/Os, and a 484-ball FCBGA mount — make it well suited to high-density digital implementations where integration and predictable electrical/thermal characteristics matter.

Choose this device when you need a commercially graded FPGA with defined core voltage and operating temperature ranges, RoHS compliance, and a surface-mount 484-FCBGA package for integration into complex PCB assemblies.

Request a quote or submit an inquiry to obtain pricing and availability for the XC7K160T-1FBG484C. Our team can provide a detailed quote tailored to your volume and delivery requirements.
