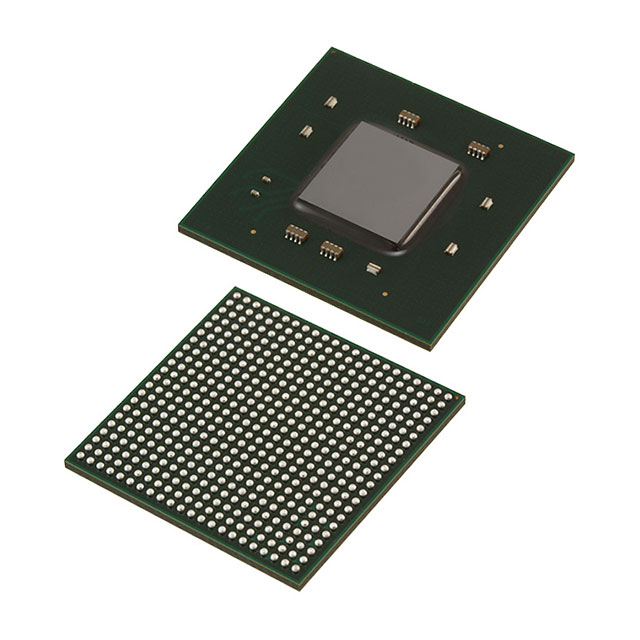

XC7K160T-L2FBG484E

The XC7K160T-L2FBG484E is a Kintex®-7 field programmable gate array (FPGA) in a 484-FCBGA surface-mount package. It delivers high logic capacity and embedded memory in an extended-grade device intended for complex digital designs.

With 162,240 logic elements, approximately 12 Mbits of on-chip RAM, and 285 user I/O, this part targets applications that require dense logic integration, substantial on-chip storage, and broad board-level interfacing while operating within a core voltage range of 870 mV to 930 mV and an ambient range of 0 °C to 100 °C.

Key Features

• Core Logic 162,240 logic elements for implementing large-scale custom digital functions.
• Embedded Memory Approximately 12 Mbits of on-chip RAM to support buffering, state storage, and memory-intensive logic.
• I/O Capacity 285 user I/O pins to support extensive peripheral and interface connections.
• Power Core supply voltage range of 870 mV to 930 mV for integration into controlled-power system designs.
• Package & Mounting 484-FCBGA (23×23) package case, surface-mount for high-density PCB layouts (Package case listed as 484-BBGA, FCBGA).
• Temperature & Grade Extended grade with an operating temperature range of 0 °C to 100 °C.
• Compliance RoHS compliant.

Typical Applications

• Custom digital processing Implement large-scale custom logic using the device's 162,240 logic elements and programmable fabric.
• On-chip buffering and staging Use approximately 12 Mbits of embedded memory for temporary storage, data buffering, and state retention.
• High-density I/O integration 285 I/O pins facilitate connectivity with sensors, peripherals, and external logic on dense PCBs.
• Prototyping and system integration Surface-mount 484-FCBGA package supports compact board designs and system prototypes operating within 0 °C to 100 °C.

Unique Advantages

• Significant logic capacity: 162,240 logic elements enable large, complex designs within a single device.
• Substantial on-chip memory: Approximately 12 Mbits of embedded RAM reduces reliance on external memory for buffering and stateful logic.
• Generous I/O resources: 285 user I/O provide flexibility for multi-peripheral and multi-interface designs.
• Extended-grade operation: Rated for 0 °C to 100 °C to support applications requiring an extended ambient range.
• Compact, high-density package: 484-FCBGA (23×23) surface-mount package supports dense PCB routing and integration.
• Regulated core voltage range: 870 mV to 930 mV core supply simplifies power budgeting and design predictability.

Why Choose XC7K160T-L2FBG484E?

The XC7K160T-L2FBG484E combines high logic density, notable on-chip memory, and broad I/O in an extended-grade Kintex-7 FPGA package. Its specifications make it well suited for engineering teams designing complex, memory-intensive digital systems that require a single-device solution with extensive I/O and predictable power requirements.

As part of the Kintex-7 family, this device provides a focused balance of logic resources and embedded memory in a compact 484-FCBGA surface-mount package, with RoHS compliance and an operating range that supports deployed systems operating between 0 °C and 100 °C.

Request a quote or submit an inquiry to receive pricing and availability for the XC7K160T-L2FBG484E.
