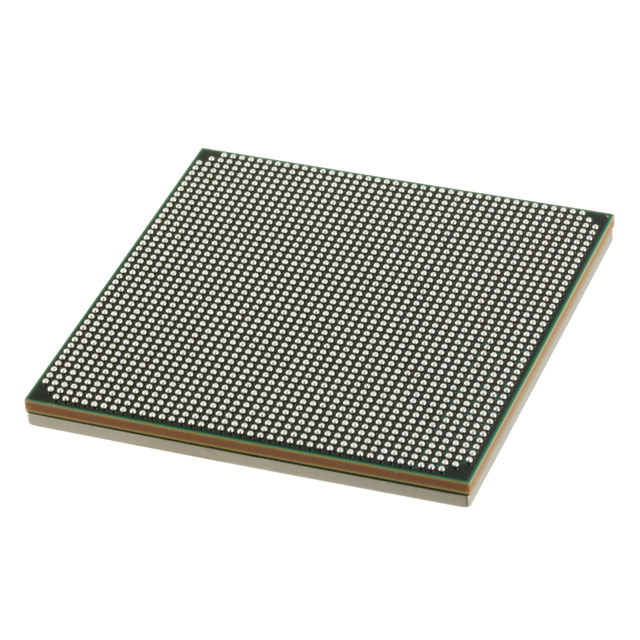

XC7V2000T-1FLG1925CES9937

The XC7V2000T-1FLG1925CES9937 is a Virtex®-7 T field programmable gate array (FPGA) from AMD. It delivers very large on-chip logic capacity and embedded memory in a ball-grid array package targeted at commercial applications.

This device is suited for designs that require high logic density, abundant embedded RAM, and large I/O counts while operating within a commercial temperature range and a low-voltage core supply.

Key Features

• High logic capacity Approximately 1,954,560 logic elements to implement large-scale digital designs.
• Embedded memory Approximately 47.6 Mbits of on-chip RAM for buffering, data storage, and local memory needs.
• Large I/O count 1,200 user I/O pins to support wide parallel interfaces and high pin-count connectivity.
• Package and mounting 1924-BBGA FCBGA package with a supplier device package listed as 1925-FCBGA (45×45); surface-mount mounting type for board-level assembly.
• Power Core voltage supply range of 0.970 V to 1.03 V to match platform power domains.
• Commercial grade and temperature Commercial grade device rated for 0 °C to 85 °C operation.
• Regulatory compliance RoHS-compliant construction.

Typical Applications

• High-density logic designs Use the large pool of logic elements and embedded RAM to implement complex digital functions and custom processing pipelines.
• I/O‑intensive systems Leverage 1,200 I/O pins for wide parallel interfaces, multi-channel data aggregation, or dense board-level connectivity.
• Commercial embedded platforms Deploy in commercial-temperature embedded systems that require significant programmable logic and on-chip memory.

Unique Advantages

• Massive on-chip logic: Nearly 2 million logic elements enable consolidation of large subsystems into a single device, reducing external glue logic.
• Substantial embedded memory: Approximately 47.6 Mbits of RAM supports large buffering and local storage, improving data throughput and latency for on-chip functions.
• High connectivity: 1,200 I/O pins provide flexibility for interfacing to multiple peripherals and high-width buses without external multiplexing.
• Compact, board-ready package: FCBGA package formats and surface-mount mounting simplify PCB integration in space-constrained designs.
• Low-voltage core support: A defined supply range (0.970 V–1.03 V) aligns with modern low-voltage power architectures.
• RoHS compliant: Environmentally compliant construction supports regulatory and supply-chain requirements.

Why Choose XC7V2000T-1FLG1925CES9937?

The XC7V2000T-1FLG1925CES9937 positions itself as a high-capacity Virtex-7 FPGA option for commercial designs that require extensive programmable logic, considerable on-chip RAM, and a large number of I/Os. Its combination of nearly 2 million logic elements, approximately 47.6 Mbits of embedded memory, and 1,200 I/O pins enables integration of complex digital functions into a single, surface-mount FCBGA package.

Manufactured by AMD and delivered in a commercial temperature grade, this device is appropriate for engineers and procurement teams targeting high-density FPGA implementations where integration, available memory, and I/O count are primary selection criteria.

Request a quote or contact sales to discuss pricing, availability, and how XC7V2000T-1FLG1925CES9937 can fit your design requirements.
