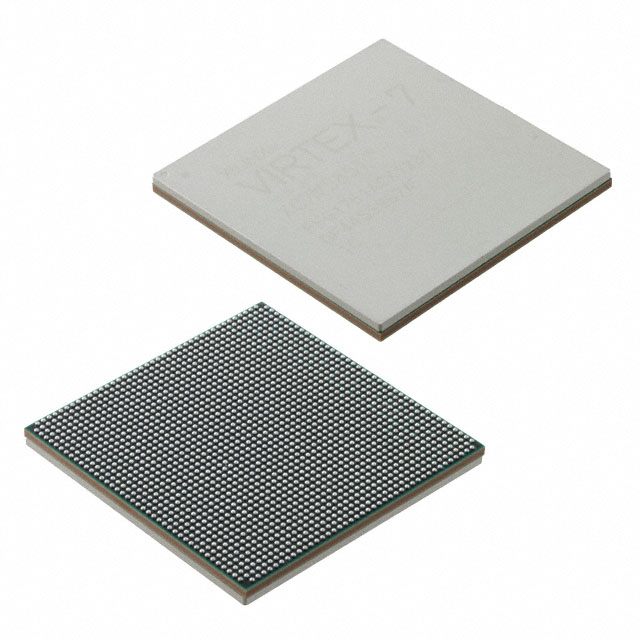

XC7V2000T-2FHG1761C

The XC7V2000T-2FHG1761C is a Virtex®-7 T Field Programmable Gate Array (FPGA) IC manufactured by AMD. It delivers a very large programmable fabric with 1,954,560 logic elements and substantial on-chip memory for complex, high-density logic implementations.

Key device attributes include approximately 47.6 Mbits of embedded memory, 850 I/O pins, a surface-mount FCBGA package, a core voltage supply range of 970 mV to 1.03 V, and commercial-grade operation from 0°C to 85°C. The device is RoHS compliant.

Key Features

• Core logic  1,954,560 logic elements provide a large programmable resource for complex digital designs.
• Embedded memory  Approximately 47.6 Mbits (47,628,288 bits) of on-chip RAM to support buffering, intermediate storage, and memory-intensive logic functions.
• I/O density  850 I/O pins enable broad external connectivity and complex interfacing options.
• Power and supply  Core voltage supply range of 970 mV to 1.03 V to match target system power configurations.
• Package and mounting  1760-BBGA, FCBGA package; supplier device package listed as 1761-FCBGA (45×45). Surface-mount mounting type for board-level assembly.
• Operating range and grade  Commercial grade operation with an operating temperature range of 0°C to 85°C.
• Environmental compliance  RoHS compliant.

Unique Advantages

• High logic capacity: The 1,954,560 logic elements support large-scale, highly parallel designs without external logic expansion.
• Significant on-chip memory: Approximately 47.6 Mbits of embedded RAM reduces the need for external memory for many buffering and storage tasks.
• Extensive external connectivity: 850 I/O pins enable integration with numerous peripherals and high-pin-count interfaces.
• Compact surface-mount FCBGA: The 1760-BBGA/1761-FCBGA package offers a high-density footprint suitable for PCB integration where space and pin count matter.
• Defined power envelope: A specified core supply range (970 mV–1.03 V) supports controlled power design and supply planning.
• Commercial readiness and compliance: Commercial operating temperature range and RoHS compliance simplify regulatory and lifecycle planning for non-automotive applications.

Why Choose XC7V2000T-2FHG1761C?

The XC7V2000T-2FHG1761C positions itself as a high-capacity, commercial-grade FPGA option for designs that require very large programmable logic resources, abundant embedded RAM, and extensive I/O. Its surface-mount FCBGA package and defined core supply range support careful board-level and power-system integration.

Manufactured by AMD and provided with RoHS compliance, this device is suited for complex digital systems where high logic density and on-chip memory reduce reliance on external components and simplify system architecture.

Request a quote or submit an inquiry to receive pricing and lead-time information for the XC7V2000T-2FHG1761C.
