5AGXMA7D4F27C4N

The 5AGXMA7D4F27C4N is an Arria V GX family FPGA from Intel, delivered in a 672-FBGA (27×27) surface-mount package for commercial-grade designs. It provides a high-density programmable fabric with 242,000 logic elements, approximately 15.47 Mbits of embedded memory, and 336 programmable I/O pins, making it suitable for demanding commercial embedded systems that require substantial on-chip logic, memory, and I/O integration.

Key Features

• Core Logic  242,000 logic elements enabling complex programmable logic implementations and large-scale design integration.
• Embedded Memory  Approximately 15.47 Mbits of on-chip RAM to support buffering, state storage, and local data processing.
• I/O Capacity  336 I/O pins for flexible peripheral interfacing and high pin-count connectivity in board-level designs.

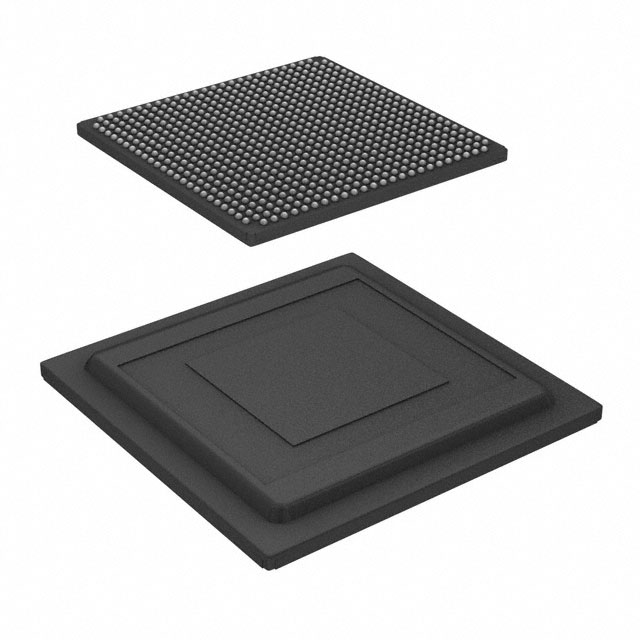

• Package & Mounting  672-FBGA (27×27) package in a surface-mount form factor suited for automated assembly and dense PCB layouts.
• Power Supply  Specified core voltage supply range of 1.07 V to 1.13 V for the device core.
• Operating Temperature  Commercial operating range from 0 °C to 85 °C for temperature environments consistent with commercial-grade electronics.
• Compliance  RoHS compliant to support environmental and regulatory requirements.
• Series Documentation  Part of the Arria V family with detailed electrical and configuration specifications available in the device datasheet.

Typical Applications

• Commercial Embedded Systems  High-density programmable logic and ample on-chip memory enable integration of custom control, data processing, and glue-logic functions in commercial products.
• High-I/O Custom Interfaces  Large I/O count supports designs requiring multiple external interfaces and board-level connectivity.
• Prototyping and System Integration  The Arria V GX device can be used for developing and validating complex logic designs prior to production implementation in commercial environments.

Unique Advantages

• High Logic Density: 242,000 logic elements enable implementation of large combinational and sequential logic blocks on a single device, reducing external component count.
• Significant On-Chip Memory: Approximately 15.47 Mbits of embedded RAM supports local buffering and state storage, improving data throughput and latency for on-device processing.
• Extensive I/O Resources: 336 I/O pins provide flexibility for multiple peripheral connections and multi-channel interfaces directly from the FPGA package.
• Commercial-Grade Specification: Rated for 0 °C to 85 °C operation and RoHS compliant, suitable for a wide range of commercial applications and manufacturing requirements.
• Compact, Assembly-Ready Package: The 672-FBGA (27×27) surface-mount package supports automated PCB assembly and dense board designs.
• Intel Arria V Documentation: Supported by the Arria V device family datasheet with detailed electrical, configuration, and timing specifications.

Why Choose 5AGXMA7D4F27C4N?

The 5AGXMA7D4F27C4N Arria V GX FPGA balances high logic capacity, substantial embedded memory, and generous I/O availability in a commercial-grade surface-mount FBGA package. It is well suited to commercial embedded designs that need on-chip integration of complex logic, local memory, and multiple external interfaces while maintaining standard commercial temperature and supply specifications.

As an Intel Arria V family device, it is supplied with comprehensive device documentation and specifications to support design, configuration, and system integration tasks.

Request a quote or submit an inquiry to check availability, lead times, and pricing for 5AGXMA7D4F27C4N. Include your required quantities and any specific packaging or delivery needs to expedite your request.
