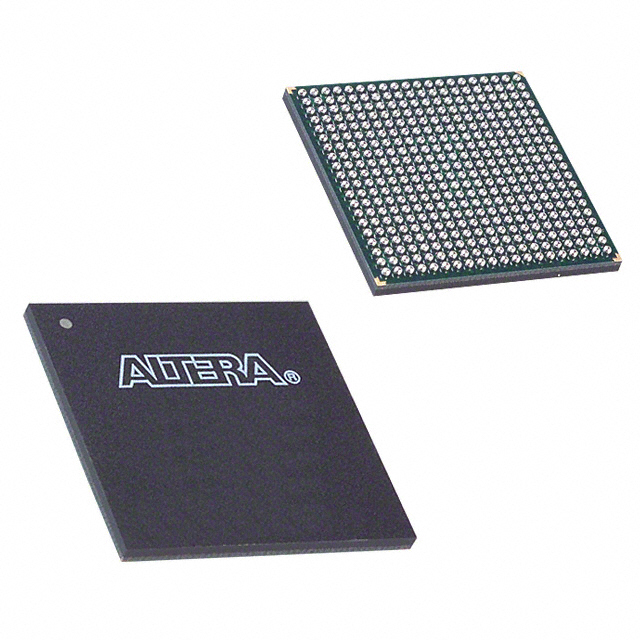

EP1C20F400C6N

The EP1C20F400C6N is an Intel Cyclone® family SRAM-based FPGA optimized for cost-sensitive data-path and system-interfacing applications. It combines a high logic capacity with on-chip embedded memory and flexible I/O in a compact 400‑BGA package.

Built on a 1.5‑V process and designed for surface-mount assembly, this commercial‑grade device targets applications that require significant programmable logic (20,060 logic elements), substantial embedded memory (approximately 294,912 bits), and up to 301 user I/O pins while operating within a 0 °C to 85 °C range.

Key Features

• Logic Capacity  20,060 logic elements provide substantial programmable fabric for mid-range FPGA designs.
• Embedded Memory  Approximately 294,912 bits of on-chip RAM to support data buffering, FIFOs, and small on-chip data structures.
• I/O Density and Flexibility  Up to 301 user I/O pins enable broad peripheral and board-level interfacing from a single device.
• Clocking Resources  Family documentation specifies up to two PLLs for clock multiplication and phase shifting to support diverse timing architectures.
• Package and Mounting  400‑BGA (supplier package: 400‑FBGA, 21×21) in a surface-mount form factor for space-efficient PCB layouts.
• Power Supply  Core voltage supply specified between 1.425 V and 1.575 V for device operation.
• Operating Grade and Temperature  Commercial grade with an operating range of 0 °C to 85 °C.
• Protocol and I/O Standard Support (Series-level)  Cyclone family documentation lists support for LVTTL, LVCMOS, SSTL‑2, SSTL‑3, LVDS, and PCI signaling options for systems that require common memory and high-speed I/O interfaces.
• Compliance  RoHS‑compliant for lead-free assembly and environmental compliance.

Typical Applications

• Data‑Path and Packet Processing  Leverages the on‑chip RAM and logic capacity to implement buffering, parsing, and custom datapath operations.
• Memory Interface and Controllers  Suitable for designs requiring DDR/SDR memory interfaces and board-level memory timing control using the device’s clocking resources.
• System Glue and ASIC/ASSP Interfacing  Acts as a programmable bridge between peripherals, ASSPs, or ASICs using abundant I/O and supported interface standards.
• High‑Speed Serial and Parallel I/O  Supports LVDS and other family-level I/O standards for moderate-rate serial links and parallel data lanes.
• Compact Embedded Systems  400‑BGA package and surface-mount compatibility make it appropriate for space-constrained boards in commercial products.

Unique Advantages

• High Logic and Memory Integration: 20,060 logic elements combined with approximately 294,912 bits of embedded memory reduce external component count for many mid-range designs.
• Broad I/O Capability: 301 user I/O pins provide design flexibility for multi‑interface systems and dense board-level connectivity.
• Deterministic Clocking: Up to two PLLs give designers options for clock multiplication and phase control without external clocking ICs.
• Compact, Surface‑Mount Package: 400‑BGA (400‑FBGA, 21×21) enables high‑density PCB layouts while maintaining significant I/O counts.
• Commercial‑Grade Reliability: Rated for 0 °C to 85 °C operation and RoHS compliance for standard commercial product cycles.
• Cost‑Effective Series Characteristics: Cyclone family traits emphasize a balance of integration and cost for data-path and interface-focused applications.

Why Choose EP1C20F400C6N?

The EP1C20F400C6N delivers a balanced combination of mid-range programmable logic, on-chip memory, and a high I/O count in a compact 400‑BGA package—making it suitable for designers needing substantial logic and memory without a large FPGA footprint. Its commercial temperature rating and RoHS compliance align it to standard product lifecycles in consumer, communications, and embedded systems.

For teams building data-path processing, memory interfaces, or system glue logic, this Cyclone® family device provides a cost-effective, integrated platform with documented family-level support for common I/O standards and clocking resources, enabling scalable designs and migration within the family.
