EP1M350F780C6

The EP1M350F780C6 is a Mercury-series Field Programmable Gate Array (FPGA) from Altera provided in a 780-BBGA FCBGA package. It combines substantial programmable logic capacity with a high I/O count and on-chip memory for compact, configurable digital designs.

With 14,400 logic elements, approximately 0.11 Mbits of embedded RAM (114,688 bits), 486 I/O pins and a 350,000-gate equivalent logic capacity, this commercial-grade, surface-mount FPGA targets applications that require dense logic, significant connectivity and integration within a 780-FBGA (29×29) footprint. It operates from 1.71 V to 1.89 V and is rated for 0 °C to 85 °C operating temperature. The part is RoHS compliant.

Key Features

• Core Logic — 14,400 logic elements delivering a programmable fabric equivalent to 350,000 gates for custom digital designs.
• Embedded Memory — Approximately 0.11 Mbits (114,688 bits) of on-chip RAM to support buffering, small-data storage and LUT-based functions.
• I/O Capacity — 486 I/O pins to support extensive peripheral and bus connectivity without heavy external expansion.

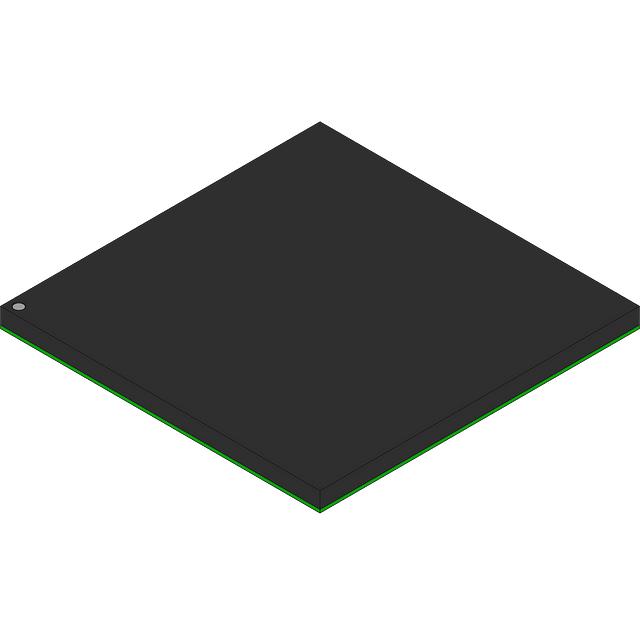

• Package — 780-BBGA, FCBGA (supplier package: 780-FBGA, 29×29) in a surface-mount form factor for space-constrained PCBs.
• Power — Low-voltage operation with a supply range of 1.71 V to 1.89 V for integration with modern low-voltage systems.
• Operating Range & Grade — Commercial grade, rated for 0 °C to 85 °C operation.
• Compliance — RoHS compliant for standard environmental and regulatory requirements.

Typical Applications

• High-density I/O systems — Use the 486 I/O pins to connect multiple peripherals and interfaces while minimizing external multiplexing.
• Custom digital logic and prototyping — The 14,400 logic elements and 350k-gate capacity support implementation of bespoke combinational and sequential logic blocks for proof-of-concept and development boards.
• Embedded memory-dependent functions — Approximately 0.11 Mbits of on-chip RAM provides local buffering and small data storage for control loops, FIFOs or lookup tables.

Unique Advantages

• High logic density: Enables implementation of complex logic functions within a single FPGA, reducing the need for multiple discrete devices.
• Extensive I/O count: 486 I/O simplifies board-level design by reducing external expanders and connectors for I/O-heavy applications.
• On-chip RAM: Embedded memory reduces dependency on external memory for small buffers and LUT storage, simplifying system architecture.
• Compact BGA footprint: 780-BBGA/FCBGA (29×29) allows high-density placement on compact PCBs while maintaining robust electrical performance.
• Low-voltage operation: 1.71 V–1.89 V supply compatibility supports integration into low-voltage power domains.
• Commercial readiness: Designed for 0 °C–85 °C operation and RoHS compliance for standard commercial product deployments.

Why Choose EP1M350F780C6?

The EP1M350F780C6 delivers a balanced combination of logic capacity, I/O density and on-chip memory in a compact 780-BBGA FCBGA package, making it suitable for commercial designs that require significant programmable logic and connectivity in a space-constrained form factor. Its low-voltage operation and RoHS compliance align with modern embedded system requirements.

This FPGA is well suited for engineers and procurement teams seeking a programmable solution that consolidates logic, I/O and small embedded memory into a single surface-mount device rated for standard commercial temperature ranges.

Request a quote or submit an inquiry to receive pricing and availability for EP1M350F780C6. Include your desired quantity and any lead-time requirements to expedite response.
