XA7A50T-1CPG236Q

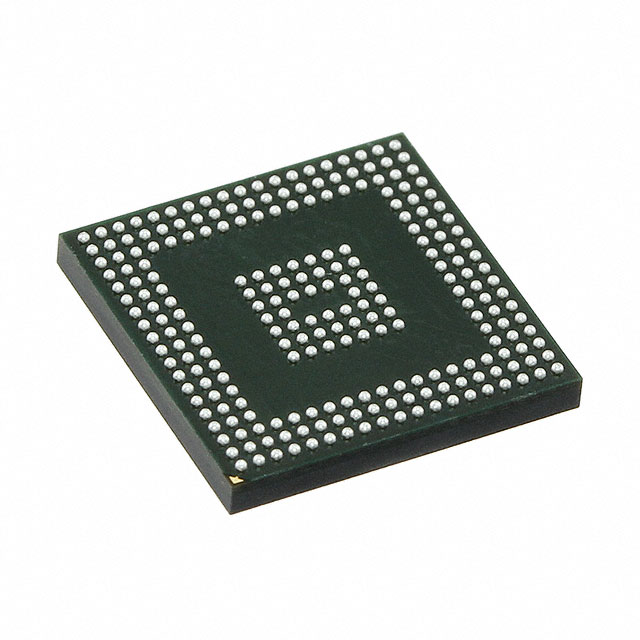

The XA7A50T-1CPG236Q is an Artix-7 XA field programmable gate array (FPGA) IC from AMD, supplied in a 238-LFBGA (CSPBGA) package. It provides a mid-range programmable logic resource set including 52,160 logic elements, approximately 2.76 Mbits of embedded memory and 106 general-purpose I/O pins.

Designed for applications that require programmable logic with robust temperature and qualification targets, this device supports a 0.95 V–1.05 V core supply and is qualified to AEC‑Q100 for automotive-grade use, with an operating range of −40°C to 125°C. The device is RoHS compliant and intended for surface-mount PCB assembly.

Key Features

• Core Logic 52,160 logic elements provide a flexible fabric for custom digital designs and hardware acceleration.
• On-chip Memory Approximately 2.76 Mbits of embedded memory to support buffering, state storage and local data paths within your design.
• I/O Capability 106 I/O pins available for interfacing with external devices, sensors and peripherals directly from the FPGA package.
• Power Supply Core voltage range of 0.95 V–1.05 V to match regulated system rails and support consistent device operation.
• Package & Mounting 238-LFBGA (238-CSBGA, 10×10) surface-mount package for compact board-level integration.
• Automotive Qualification & Temperature Range AEC‑Q100 qualification with an operating temperature range of −40°C to 125°C for use in temperature-demanding environments.
• Regulatory Compliance RoHS compliant for environmental and manufacturing compliance requirements.

Typical Applications

• Automotive Systems — Suitable for programmable control and interfacing functions in automotive electronic modules where AEC‑Q100 qualification and extended temperature operation are required.
• Embedded Control — Implement custom control logic, state machines and protocol handling using the device’s logic and on-chip memory resources.
• Signal Processing — Use the FPGA fabric and embedded memory for deterministic, low-latency data manipulation and buffering in signal conditioning paths.
• Custom I/O and Interface Bridging — Leverage 106 I/O pins to implement interface bridging, protocol conversion or sensor aggregation on compact PCB layouts.

Unique Advantages

• Programmable Performance: 52,160 logic elements enable tailored digital implementations without fixed-function constraints, reducing the need for multiple discrete components.
• Embedded Memory Capacity: Approximately 2.76 Mbits of on-chip RAM minimizes external memory dependence and simplifies board-level designs for buffering and local data storage.
• Automotive-Ready Qualification: AEC‑Q100 qualification and −40°C to 125°C operating range support deployment in temperature-demanding and automotive environments.
• Compact Surface-Mount Footprint: 238-LFBGA (10×10 CSBGA) package allows high-density placement and reliable soldered mounting for production assemblies.
• Supply and Regulatory Compliance: Operates from a 0.95 V–1.05 V core supply and is RoHS compliant, aiding integration into regulated product designs.

Why Choose XA7A50T-1CPG236Q?

The XA7A50T-1CPG236Q combines a substantial logic resource set with embedded memory and a 106-pin I/O count in a compact 238-LFBGA package, making it suitable for designs that require flexible, programmable hardware in constrained spaces. Its AEC‑Q100 qualification and extended temperature range position it for use in automotive and other demanding environments where qualification and reliability matter.

This device is appropriate for teams needing a programmable, integrated solution backed by AMD’s Artix-7 XA family specifications, offering a balance of logic capacity, on-chip RAM and I/O for mid-range FPGA applications that demand rugged operating conditions and surface-mount PCB assembly.

Request a quote or submit an inquiry for XA7A50T-1CPG236Q to receive pricing and availability information from our sales team.
