XCKU025-2FFVA1156E

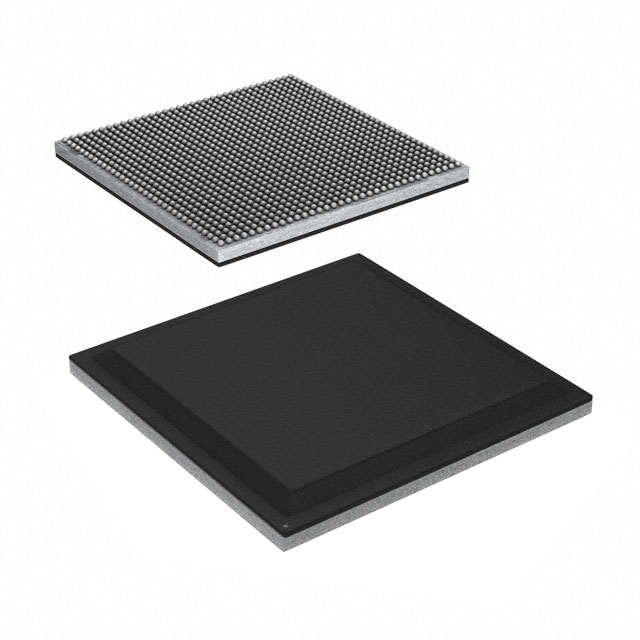

The XCKU025-2FFVA1156E is a Kintex® UltraScale™ Field Programmable Gate Array (FPGA) in a 1156-ball FCBGA package. It provides a substantial amount of programmable logic, on-chip memory, and I/O capacity in a surface-mount 1156-FCBGA (35×35) package.

Delivered in an Extended grade with a specified core supply range and operating temperature window, this device is intended for designs that require a defined combination of logic resources, embedded RAM, and multiple I/O channels.

Key Features

• Logic resources  318,150 logic elements arranged across 18,180 CLBs, providing significant programmable capacity for complex logic implementations.
• Embedded memory  Approximately 13.0 Mbits of on-chip RAM (13,004,800 bits) for buffering, lookup tables, and intermediate data storage.
• I/O and package  312 user I/O pins in a 1156-BBGA, FCBGA package; supplier device package listed as 1156-FCBGA (35×35). Surface-mount mounting type supports compact board-level integration.
• Power  Specified core voltage supply range of 922 mV to 979 mV for the programmable fabric.
• Operating conditions  Extended grade with an operating temperature range of 0 °C to 100 °C.
• Environmental compliance  RoHS compliant.

Unique Advantages

• Substantial programmable capacity: 318,150 logic elements enable large-scale logic implementations without external programmable resources.
• On-chip memory for data handling: Approximately 13.0 Mbits of embedded RAM reduces reliance on external memory for buffering and temporary storage.
• Ample I/O in a compact package: 312 I/Os paired with a 1156-FCBGA (35×35) package supports high I/O count designs while conserving board space.
• Controlled power envelope: The defined 922 mV–979 mV supply range supports precise power delivery and regulator selection.
• Extended-grade operation: Rated for 0 °C to 100 °C operation to meet systems requiring this temperature range.
• Regulatory alignment: RoHS compliance supports environmental requirements for modern electronics production.

Why Choose XCKU025-2FFVA1156E?

The XCKU025-2FFVA1156E combines a large complement of logic elements, approximately 13.0 Mbits of embedded RAM, and 312 I/Os in a 1156-FCBGA surface-mount package, offering a balanced platform for designs that need significant on-chip resources and multi-channel connectivity. Its specified supply range and extended operating grade provide clear parameters for power and thermal planning.

This device is suited for development teams and integrators seeking a Kintex® UltraScale™ FPGA with verifiable logic, memory, I/O, and environmental characteristics—enabling predictable integration, scaling, and long-term support in qualifying applications.

Request a quote or submit an inquiry to receive pricing, availability, and ordering information for XCKU025-2FFVA1156E.
