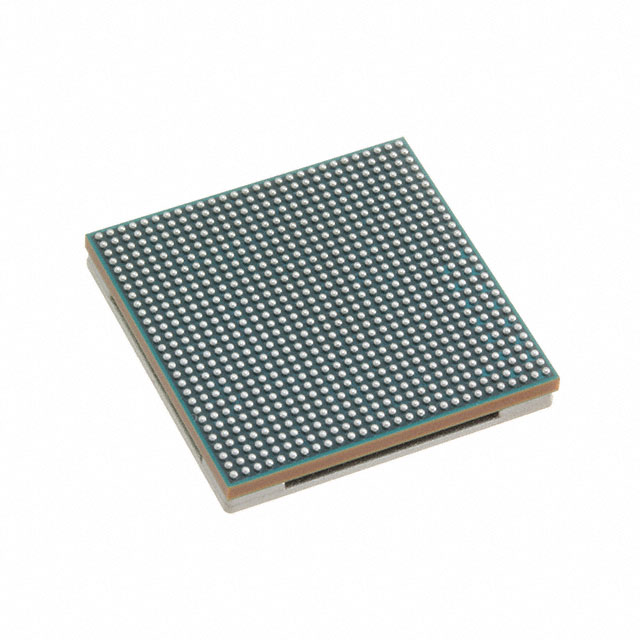

XCKU035-3SFVA784E
| Part Description |
Kintex® UltraScale™ Field Programmable Gate Array (FPGA) IC 468 19456000 444343 784-BFBGA, FCCSP |
|---|---|
| Quantity | 1,191 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 784-FCCSPBGA (23x23) | Grade | Extended | Operating Temperature | 0°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 784-BFBGA, FCCSP | Number of I/O | 468 | Voltage | 970 mV - 1.03 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 4 (72 Hours) | Number of LABs/CLBs | 25391 | Number of Logic Elements/Cells | 444343 | ||
| Number of Gates | N/A | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 19456000 |
Overview of XCKU035-3SFVA784E – Kintex® UltraScale™ Field Programmable Gate Array (FPGA) IC 468 I/O, ~19.456 Mbits RAM, 444,343 logic elements, 784-BFBGA FCCSP
The XCKU035-3SFVA784E is a Kintex® UltraScale™ field programmable gate array (FPGA) IC optimized for designs that require high logic density and substantial on-chip memory. It combines a large logic fabric with significant embedded RAM and a high I/O count, delivered in a 784-ball FCCSP/BFBGA package for surface-mount integration.
This device is targeted at systems that need programmable digital logic, flexible I/O routing, and compact board-level packaging while operating within a core supply range of 0.970–1.030 V and an ambient temperature range of 0 °C to 100 °C.
Key Features
- Logic Capacity — 444,343 logic elements provide substantial programmable logic resources for complex digital designs and algorithm implementation.
- Embedded Memory — Approximately 19.456 Mbits of on-chip RAM to support buffering, state storage, and data-path implementations.
- I/O Resources — 468 general-purpose I/O pins to support wide peripheral and signaling requirements across interfaces.
- Power and Voltage — Core voltage supply range of 0.970 V to 1.030 V for compatibility with target power domains.
- Package and Mounting — Surface-mount 784-ball BFBGA / FCCSP package; supplier device package listed as 784-FCCSPBGA (23×23) for compact PCB footprint and high-pin-count routing.
- Operating Range — Grade: Extended; specified ambient operating temperature range from 0 °C to 100 °C.
- Compliance — RoHS compliant.
Typical Applications
- High-density digital processing — Leverage 444,343 logic elements and embedded RAM for data-path acceleration and custom processing blocks.
- Interface consolidation — Use 468 I/O pins to bridge multiple peripherals and high-pin-count interfaces on a single device.
- Compact system integration — The 784-ball FCCSP/BFBGA surface-mount package enables high functionality in space-constrained PCB designs.
Unique Advantages
- Substantial logic resources: 444,343 logic elements allow complex functions and large-scale integration within a single FPGA.
- Significant on-chip memory: Approximately 19.456 Mbits of embedded RAM reduces external memory dependence and simplifies board-level design.
- High I/O count: 468 I/O pins support extensive connectivity and flexible interfacing to peripherals and board-level buses.
- Compact, high-density package: 784-ball FCCSP/BFBGA (23×23) enables high pin count in a compact footprint for space-constrained applications.
- Controlled power envelope: Defined core supply range (0.970–1.030 V) supports predictable power planning and voltage rail design.
- Regulatory compliance: RoHS compliance supports environmentally conscious manufacturing requirements.
Why Choose XCKU035-3SFVA784E?
The XCKU035-3SFVA784E positions itself as a high-capacity, surface-mount Kintex® UltraScale FPGA that balances large programmable logic and embedded memory with extensive I/O in a compact 784-ball package. Its specification set—hundreds of thousands of logic elements, approximately 19.456 Mbits of on-chip RAM, and 468 I/O—makes it suitable for designs that require dense integration of digital functions and flexible board-level connectivity.
Designed for developers and procurement teams seeking scalable FPGA resources with defined operating and power parameters, this device offers a clear path for integrating complex logic, consolidating interfaces, and reducing external component needs while adhering to RoHS requirements.
Request a quote or submit a purchasing inquiry to evaluate XCKU035-3SFVA784E for your next project and receive pricing and availability information.
