EP20K1000CF672C7N

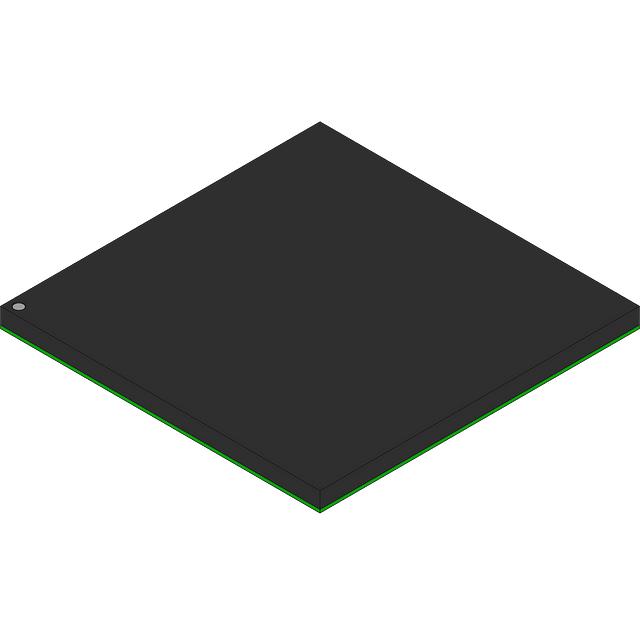

The EP20K1000CF672C7N is an APEX-20KC® Field Programmable Gate Array (FPGA) IC from Altera, delivered in a 672-ball BGA FCBGA package. It provides a balance of logic capacity, on-chip memory and high I/O count for commercial-grade programmable logic designs.

With approximately 38,400 logic elements, roughly 0.328 Mbits of embedded RAM, and 508 general-purpose I/O, this device targets designs that require moderate logic density and significant external interface capacity while operating from a 1.71 V–1.89 V core supply within a 0 °C to 85 °C commercial temperature range.

Key Features

• Logic Capacity — Approximately 38,400 logic elements to implement custom combinational and sequential logic functions.
• Embedded Memory — Approximately 0.328 Mbits of on-chip RAM for buffers, FIFOs and small data stores.
• I/O Density — 508 I/O pins to support broad external connectivity and high-pin-count interfaces.
• Power — Core voltage supply specified at 1.71 V to 1.89 V for compatibility with targeted power domains.
• Package & Mounting — 672-ball BGA (FCBGA) in a 27 × 27 mm supplier device package; surface-mount mounting type for compact PCB integration.
• Operating Range — Commercial-grade operation from 0 °C to 85 °C.
• Regulatory — RoHS compliant construction.

Typical Applications

• Embedded systems — Implement custom control and processing functions where up to 38,400 logic elements and 508 I/O are required.
• High-density I/O interfaces — Act as a configurable bridge or glue logic for designs needing numerous external connections.
• On-board buffering and small data storage — Use the embedded RAM for temporary storage, FIFOs, or lookup tables within a programmable logic solution.

Unique Advantages

• Significant logic capacity: Approximately 38,400 logic elements enable implementation of complex, custom logic without discrete gate arrays.
• High I/O count: 508 configurable I/O pins simplify integration with multi-device systems and dense peripheral arrays.
• Compact, surface-mount packaging: 672-ball FCBGA in a 27 × 27 mm footprint supports space-constrained PCB layouts while providing extensive pin access.
• Commercial temperature suitability: Rated for 0 °C to 85 °C operation for standard commercial applications and environments.
• RoHS compliance: Environmentally compliant manufacturing for assemblies requiring lead-free components.

Why Choose EP20K1000CF672C7N?

The EP20K1000CF672C7N delivers a balanced mix of logic resources, embedded memory and high I/O count in a compact 672-BBGA package. Its specifications make it well suited for commercial designs that demand moderate logic density, substantial external interfacing and a reliable, RoHS-compliant component footprint.

Choose this APEX-20KC® FPGA when your design requires scalable programmable logic, flexible I/O routing and a commercial temperature rating, all within a surface-mount BGA package designed for PCB integration.

Request a quote or submit an inquiry to receive pricing and availability information for EP20K1000CF672C7N.
