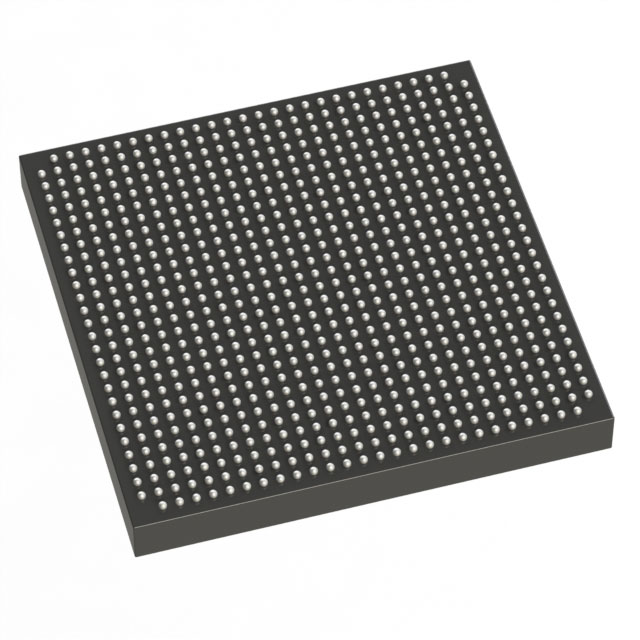

EP3SL50F780I4G

IC FPGA 488 I/O 780FBGA
Part Description

Stratix® III L Field Programmable Gate Array (FPGA) IC 488 2184192 47500 780-BBGA, FCBGA

Quantity 853 Available (as of October 7, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerIntel
Manufacturing StatusActive
Manufacturer Standard Lead Time26 Weeks
Datasheet

Specifications & Environmental

Device Package780-FBGA (29x29)GradeIndustrialOperating Temperature-40°C – 100°C
Package / Case780-BBGA, FCBGANumber of I/O488Voltage860 mV - 1.15 V
Mounting MethodSurface MountRoHS ComplianceRoHS CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs1900Number of Logic Elements/Cells47500
Number of GatesN/AECCNPENDING ECCNHTS Code0000.00.0000
QualificationN/ATotal RAM Bits2184192

Overview of EP3SL50F780I4G – Stratix® III L FPGA, 47,500 Logic Elements, 780-FBGA

The EP3SL50F780I4G is an industrial-grade Stratix® III L field programmable gate array (FPGA) offered in a 780-ball FCBGA package (29 × 29). It combines a high logic capacity with embedded memory and flexible I/O to support high-performance logic, digital signal processing (DSP), and embedded designs.

Built on the Stratix III family architecture, the device emphasizes performance and power management with selectable core voltage and Programmable Power Technology. Typical use cases include high-throughput DSP, complex system integration, and memory-interface applications that require substantial logic, on-chip RAM, and robust I/O.

Key Features

  • Logic Capacity — 47,500 logic elements for implementation of complex control, processing, and custom logic functions.
  • Embedded Memory — Approximately 2.18 Mbits of on-chip RAM (2,184,192 bits) to support buffers, FIFOs, and data-processing pipelines.
  • I/O and Package — 488 user I/O pins in a 780-BBGA FCBGA (supplier device package: 780-FBGA, 29×29) with surface-mount mounting for high-density board designs.
  • Voltage and Power — Selectable core voltage operation with supply range from 0.860 V to 1.150 V, enabling trade-offs between performance and power.
  • Temperature and Grade — Industrial operating range from −40 °C to 100 °C; RoHS compliant.
  • DSP Capabilities — Series architecture includes dedicated high-speed DSP blocks supporting 9×9, 12×12, 18×18, and 36×36 multipliers for multiply-accumulate and FIR filter implementations.
  • Clocking and PLLs — Support for up to 16 global clocks, 88 regional clocks, 116 peripheral clocks, and up to 12 phase-locked loops (PLLs) for flexible clock management and synthesis.
  • Memory Interface and High-speed I/O — Series-level support for DDR-family memory interfaces and high-speed differential I/O with serializer/deserializer (SERDES) and dynamic phase alignment features.
  • Security and Reliability — Series options include 256-bit AES encryption for configuration bitstream protection and configuration memory error detection (CRC) with built-in error detection and correction mechanisms for on-chip memory.

Typical Applications

  • High-performance DSP Systems — Implement FIR filters, transforms, and multiply-accumulate engines using the device’s dedicated DSP blocks and abundant logic resources.
  • Networking and Communications — Use high-speed differential I/O and SERDES support for protocol processing, packet handling, and interface bridging.
  • Memory Interface Controllers — Leverage the embedded RAM and memory-interface support to build DDR/DDR2/DDR3 and specialized SRAM controller logic.
  • Embedded and Prototype Systems — Combine configurable logic, on-chip memory, and PLL-based clock management for system integration and evaluation platforms.

Unique Advantages

  • Substantial Logic and Memory in a Single Device: 47,500 logic elements and approximately 2.18 Mbits of embedded RAM reduce the need for external logic and memory, simplifying BOM and board layout.
  • Flexible Power/Performance Trade-offs: Selectable core voltage and Programmable Power Technology allow designers to optimize for either higher performance or lower power consumption within the 0.860–1.150 V supply range.
  • Robust I/O and Packaging: 488 user I/Os in a 780-ball FCBGA (29×29) package deliver high pin-count connectivity for dense system designs while supporting surface-mount assembly.
  • Advanced DSP and Clocking Resources: Dedicated multiplier blocks and extensive clocking resources (global/regional/peripheral clocks plus up to 12 PLLs) enable precise timing control and high-throughput signal processing.
  • Industrial Temperature Range: Rated from −40 °C to 100 °C to support demanding operating environments.
  • Built-in Security and Reliability Features: Support for AES-based configuration protection and on-chip error detection/correction improves system integrity and uptime.

Why Choose EP3SL50F780I4G?

The EP3SL50F780I4G positions itself as a versatile, industrial-grade FPGA for designs that require a balance of logic density, on-chip RAM, and robust I/O in a compact FCBGA package. Its Stratix III L architecture offers configurable power/performance modes, abundant DSP resources, and comprehensive clocking options suitable for complex signal-processing and high-speed interface applications.

Design teams targeting scalable, high-performance FPGA implementations will find this device useful for reducing external components, consolidating functionality on-chip, and supporting long-term deployment in industrial environments with RoHS compliance and broad configuration/security features.

Request a quote or submit an inquiry to check pricing and availability for the EP3SL50F780I4G.
